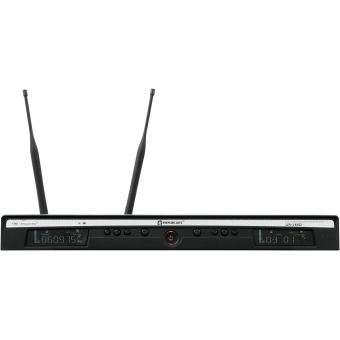

RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz

Diversity wireless receiver with DSP for microphone modeling and PC software

• 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
• Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
• Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
• Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
• DSP programming and management via Ethernet port and intuitively operated PC software
• High-quality antenna diversity reception
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Pilot frequency squelch technology delete wireless RF interference
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Multiple units can be linked with network cables
• Lock function for prevents undesired changes to settings
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Rugged metal housing
• (19") 48.3 cm rack installation possible 1 U
• Digital signal processor 96kHz, 24 bit
• Operating range up to 80m
• UHF 863 - 865 MHz License-free and approved in Europe
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• Up to 9 transmitters can be operated in parallel without interference
• Multicolor LCD display
• The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
• Desktop console housing
