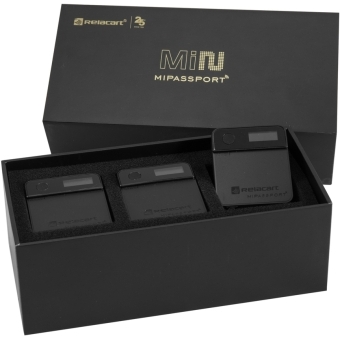

Wireless 2-channel audio transmission system for cameras
transmitter
| Type: | Wireless set |
| Power supply: | 5V DC 500 mA |
| Power connection: | Battery/battery pack Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Battery pack type: | 1 x lithium ion 3.7 V, 450 mAh, 1.665 Wh |
| Battery pack: | Battery operation up to 7h |
| Frequency range: | 100 - 20000 Hz |
| S/N ratio: | >93 dB |
| Range: | Up to 50m with line-of-sight Up to 50m |
| Frequency band: | 2.4 GHz |
| Parallel mode: | Max. 6 transmitter |
| Display type: | Monochrome OLED display |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 4.4 cm Depth: 1.9 cm Height: 5 cm |
| Weight: | 0.18 kg |
| Transmitter | |
| Capsule type: | Electret |
| Polar pattern: | Omnidirectional |
| Number of channels: | 1 |
| Max. SPL: | 97 dB |
| RF power output: | 10 dBm |
| Connections: | Input: microphone via 3.5 mm jack (mono) mounting version 2.5 V |
| Weight: | 0.033 kg |
| Receiver | |
| Number of channels: | 2 |
| Gain: | Output: -2 dB Output: -4 dB Output: -6 dB |
| Connections: | Output: microphone via 1 x 3.5 mm jack (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Weight: | 0.034 kg |
