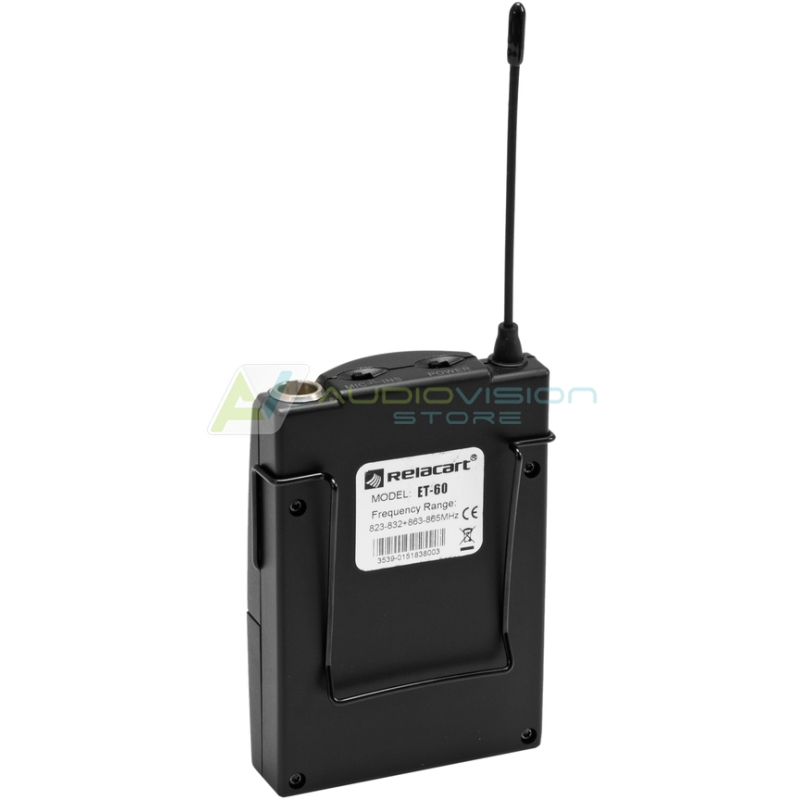

de la in 60 de rate fixe.UHF pocket transmitter for model WAM-402, 823-832 + 863-865 MHz
transmitter
microphone
| Type: | Bodypack with microphone |
| Power consumption: | 0.42 W |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: | 11 MHz |
| Parallel mode: | Max. 8 transmitter |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Weight: | 0.11 kg |
| Transmitter | |
| Power supply: | 3V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Up to 80m |
| Control elements: | Transmitter power switch (high-low) |
| Switch: | On/off switch; Mic/Ins switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.5 cm Depth: 2.5 cm Height: 9.5 cm |
| Weight: | 0.086 kg |
| Microphone | |
| Type: | Lavalier microphone |
| Cable length: | 1.20 m |
| Capsule type: | Electret |
| Polar pattern: | Cardioid |
| Frequency range: | 60 - 12000 Hz |
| Sensitivity: | -42 dB |
| Connector type: | Mini XLR (F) 4-pin |
| Material: | Metal |
| Color: | Black |
| Weight: | 0.020 kg |
