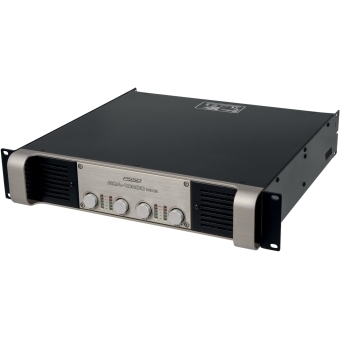

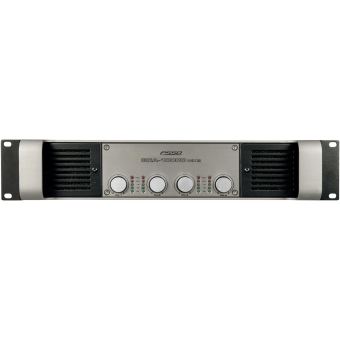

4-channel PA Amplifiers with Integrated SMPS The 4-channel PA amplifiers of the QCA series offer ultra-high output power paired with a low weight and small overall height. The amplifiers use a patented second-generation Class I output circuitry which combines the high efficiency off Class D and the sound quality of Class A. Featuring a modern switch-mode power supply, the amplifiers provide up to 10 kW peak power and weigh less than 14 kg. This makes the series particularly attractive for mobile applications. The amplifiers can be used flexibly in stereo operation, parallel operation or in mono bridge operation. Extensive protective circuits will protect the amplifiers and the speakers connected.
Class I multi-channel PA amplifier with SMPS, 4 x 2500 W RMS (2 ohms), 4 x 2100 W RMS (4 ohms)
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1150 W 1/8 power |
| Protection class: | Protection class I |
| Output power: | 4 x 2500 W RMS (2 ohms) 4 x 2100 W RMS (4 ohms) 4 x 1300 W RMS (8 ohms) 2 x 5000 W RMS bridged (4 ohms) 2 x 4200 W RMS bridged (8 ohms) |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | 1.5 m |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >80 dB |
| THD: | 10 V/µs |
| Damping factor: | >800 |
| Crosstalk: | >65 dB |
| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: | Overheat; overload; short-circuit; softstart; DC voltage; VHF |
| Status LED: | Power, level meter, clip, protect |
| Connections: | Input: line via 4 x 3-pin XLR (F) mounting version Output: line via 4 x 3-pin XLR (M) mounting version Output: speaker via 4 x speaker built-in socket (F) |
| Input sensitivity: | 0.775 V; 1.0 V; 1.4 V , switchable; 26 dB; 32 dB; 38 dB , switchable |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 44.5 cm Height: 8.9 cm |
| Weight: | 13.90 kg |
