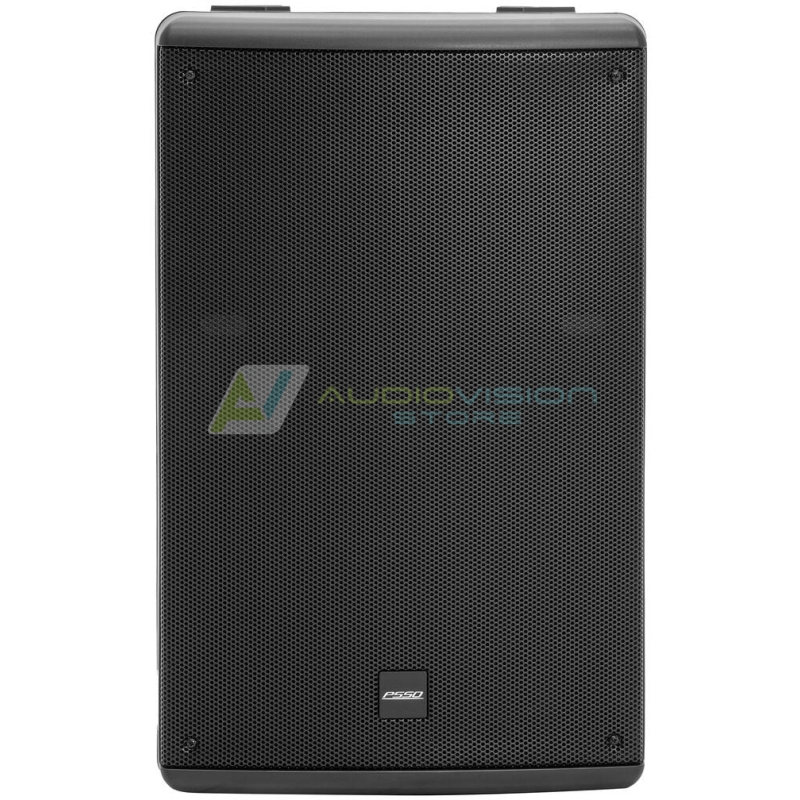

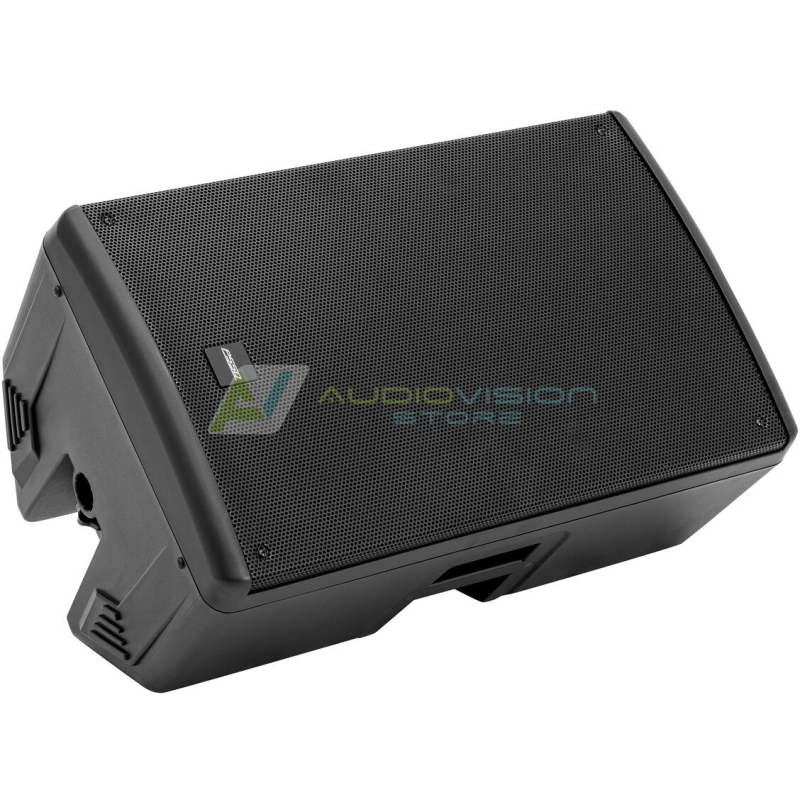

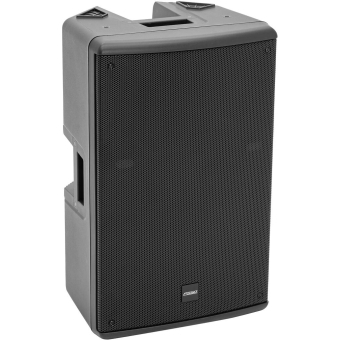

Active speaker with 12" woofer, 1" driver, 700 W RMS,
Package contents
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1000 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Power: | 700W RMS Peak: 1400W |
| Frequency range: | 56 - 20000 Hz |
| Max. SPL: | 135 dB |
| DSP: | Digital signal processor FIR Filter |
| DSP presets: | LIVE; MONITOR; MUSIC; SPEECH; SUB; FLAT |
| Dispersion angle: | 90° x 60° |
| Cooling: | Passive convection cooling |
| Attachment system: | Flange: |

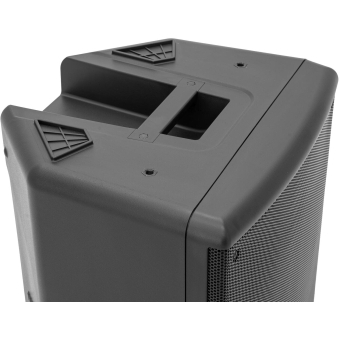

| Flying points: | 3 x M10 thread |
| Circuitry: | Class D Biamp |

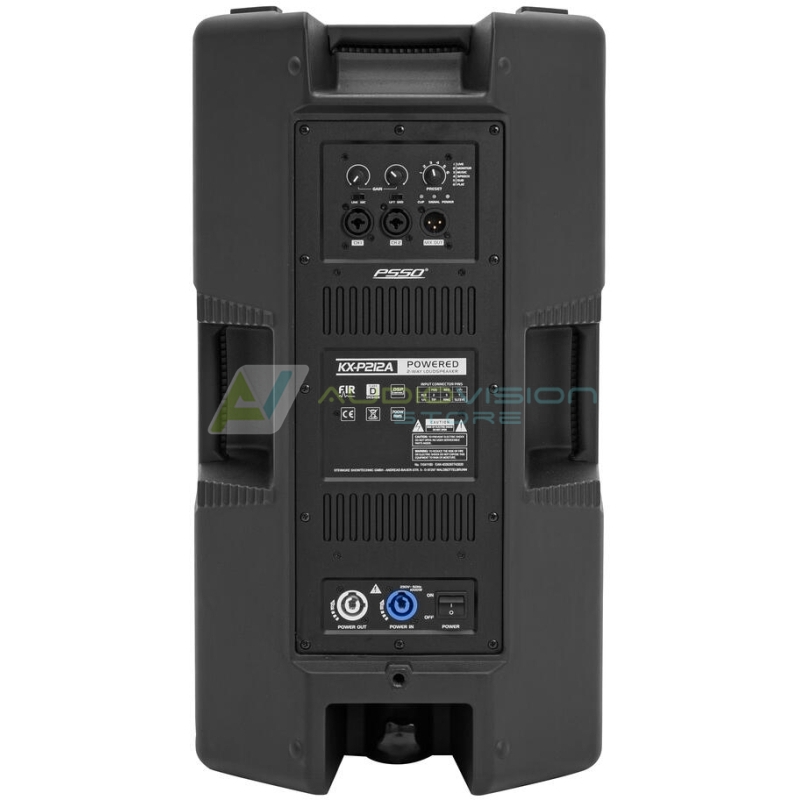

| Control elements: | Power switch, groundlift selector, Input sensitivity switch, DSP preset switch, level control per channel |
| Controls: | Overheat; DC voltage; short-circuit; limiter |
| Status LED: | Power, signal, clip |
| Connections: | Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR (M) mounting version |

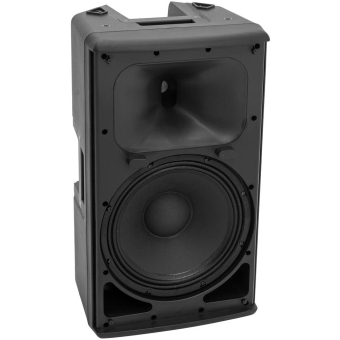

| Speaker: | 1 x woofer 12" with ferrit magnet Basket material: steel Conematerial: cardboard/paper Voice coil lows 3" 1 x compression tweeter highs 1" with ferrit magnet Voice coil compression tweeter highs 1,5" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |

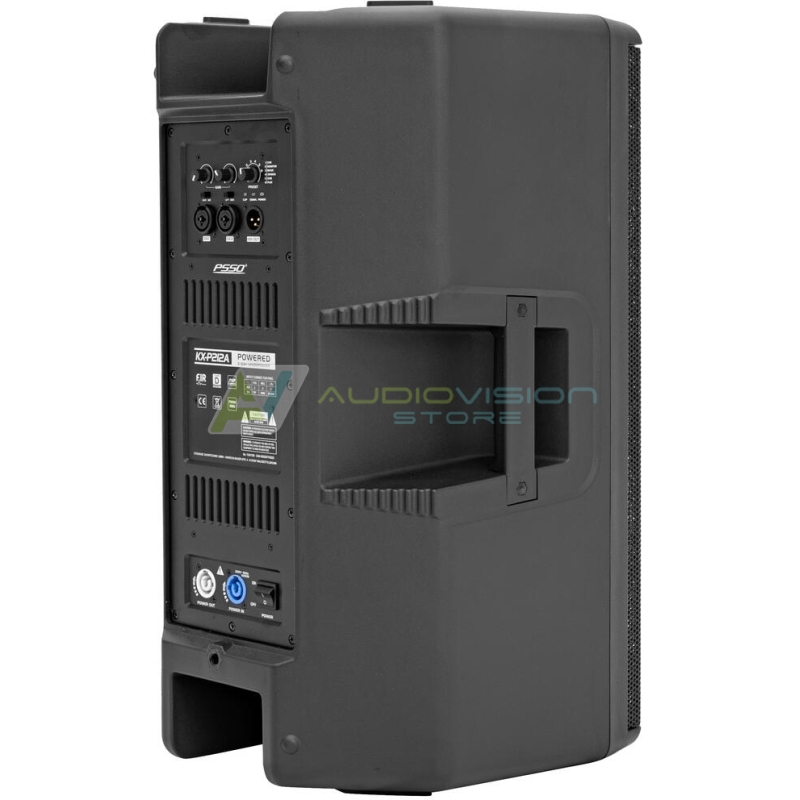

| Carrying handle: | 3 pc/pcs |
| Material: | PP polypropylene, powder-coated |
| Color: | Black, matte |
| Dimensions: | Width: 35 cm Depth: 33,5 cm Height: 63 cm |
| Weight: | 17,75 kg |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | 2,5 m detachable |
