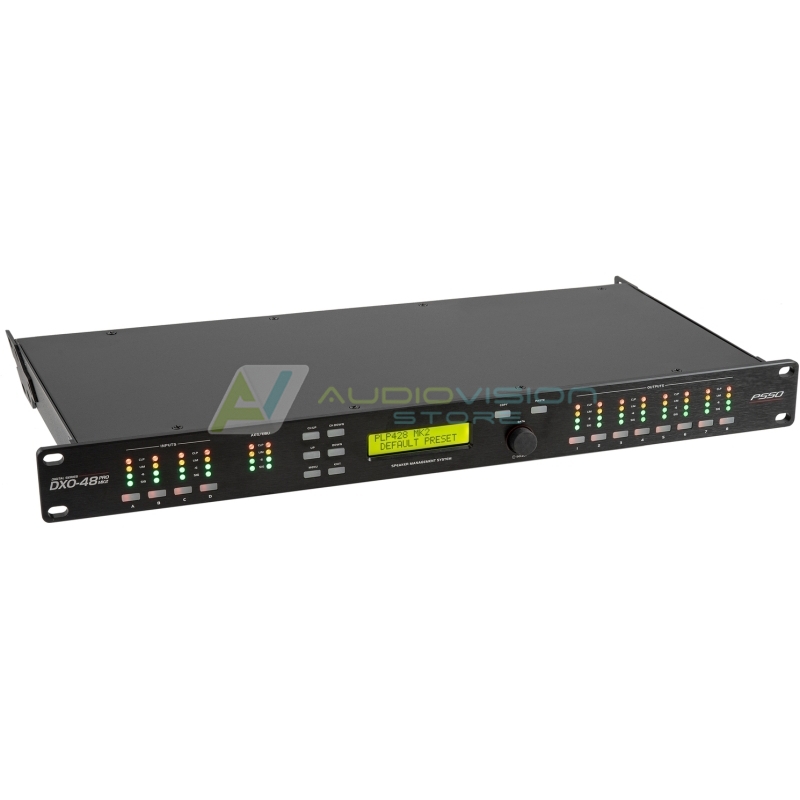

PSSO DXO-48 PRO MK2 Digital Controller

Digital Speaker Management System with 4 inputs and 8 outputs, incl. software

• Digital network speaker management system with 64-bit processing
• Premium components ensure excellent sound-features
• Flexible routing configurations for all standard mono and stereo output operating modes
• 4 analog inputs and 1digital AES/EBU interface (XLR)
• 8 analog outputs (XLR)
• 10-band parametric EQ per input and output
• Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
• Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
• Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
• Real-time analyzer function (RTA)
• FIR filters with 8 x 384 taps
• The intelligent software for allows convenient control with a computer
• Full configuration and real-time network communication via the built-in Ethernet interface
• Presets are easy to store, transfer and manage
• Up to 100 user presets storable in the device via software
• Control of all functions also possible via the controls at the front panel
• Input sensitivity digitally adjustable
• Inputs and outputs with 4-digit VU meter
• Mute switch with LED indicator per input and output
• Up to 2000 ms signal delay adjustable for the inputs and 50 ms for the outputs
• Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
• 4-band compressor for all inputs and outputs
• Switchable phase
• Lock function for prevents undesired changes to settings
• 2 Ethernet ports for easy wiring
• Sample rate: 96 kHz
• (19") 48.3 cm rack installation 1 U
• Digital signal processor FIR Filter
• Monochrome LCD display
• The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
  firmware can be updated
• Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
• For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels; rental
