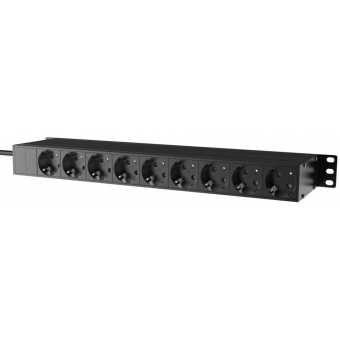

The PSR529 series includes a switchable LED rack light, two front USB jacks and a 16 Amps circuit breaker on the front panel of the unit. Power surge & spike protection is offered by the internal protector network, while a voltage and current indicator allow continuous voltage and power consumption monitoring. Power distribution for up to nine devices is made possible using the rear output sockets.
| Product features | ||||
|---|---|---|---|---|
| Cable length | 2.5 m | |||
| Unit height | 1 HE | |||
| Weight | 1.92 kg | |||
| Power handling | 250 V AC ~ 16 A / 4000 W | |||
| Dimensions | 483 x 44.7 mm (W x H) (with mounting ears) | |||
| Surge protection | Maximum continuous working voltage (Ur): < 1000V | |||
| Surge protection | Nominal discharge current (8/20μS) In: 10 KA | |||
| Surge protection | Voltage protection level (Up): < 1000 V | |||
| Surge protection | Response time (tA): < 25 nS | |||
| Surge protection | Insulation resistance (Ris): > 100 MΩ | |||
| USB | 2 x USB Type A connections | |||
| USB | 5V / 2.1 A supply (two ports combined) | |||
| LED Light | Switchable ON/OFF (switch) | |||
| LED Light | Dimmable between 25% and 100% | |||
| LED Light | Max. 70 lumen | |||
