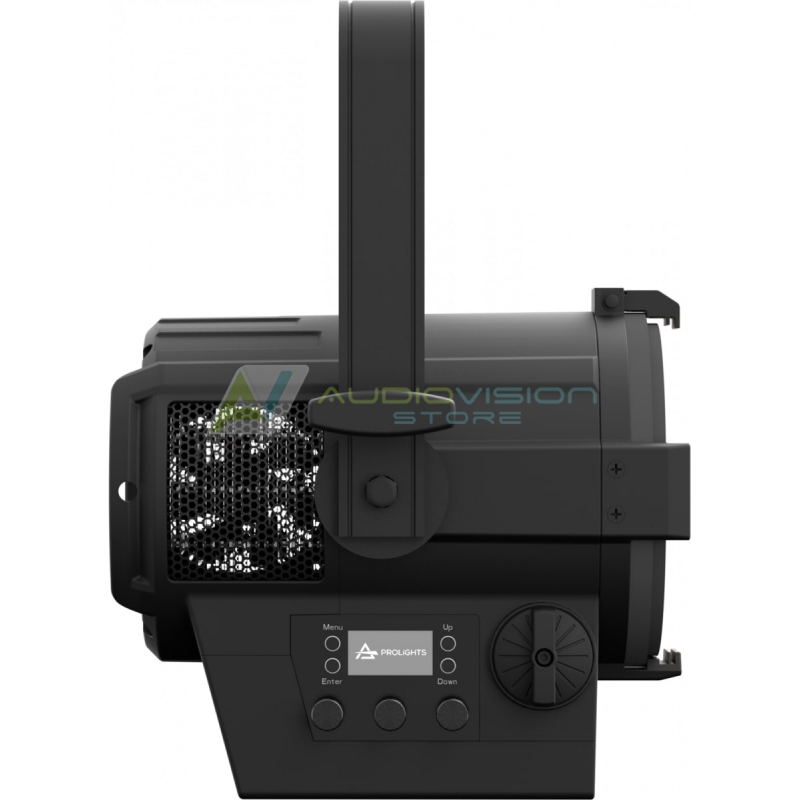

Prolights ECLFRESNELJTW FRESNEL projector BK, 130W full colour and TW LED, 15,5°-51°, 100W, BD incl.

Prolights ECLFRESNELJTW FRESNEL projector BK, 130W full colour and TW LED, 15,5°-51°, 100W, BD incl.
6382.39 Lei
5744.15 Lei
*pretul include TVA
La comanda
Prolights
cod produs: ECLFRESNELJTW
Descrierea Produsului

LED Fresnel FC and Tunable White with colour correction, to replace 650W lamp

EclFresnel JrTW is an advanced LED replacement of traditional 650W Fresnel lamps, featuring 6 colour mixing delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 130W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with added ability to apply +/- green and magenta correction to match other sources of light.
Featuring HD dimming and tuning from 2.800 K to 10.000 K version with external battery capabilities, the EclFresnel JrTW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use
  • Battery ready, compatible with industry standard external batteries (optional)
LIGHT SOURCE
  • Source: 130W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000K
  • Luminous flux: (15,5°) 1'610 lm - (55°) 2'952lm @full
  • Lux: (15,5°) 709 lx - (55°) 145lx @5 m full
  • CRI: 91 @3.200 K; 92 @5.600 K
  • R9: 95 @3.200 K; 93 @5.600 K
  • TLCI: 86 @5.600 K
  • TM30 Rf: 88 @3.200 K; 86 @5.600 K
  • TM30 Rg: 106 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 15,5° - 55° half peak angle
  • Lens diameter: 6'' - 150mm / 0.24''
  • Lens type: fresnel zoom lens
COLOUR SYSTEM
  • Colour mixing: tunable white + colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS
  • Static colour mode: selection of static colour
  • Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM ready for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 100W
  • Output (at 230V): 23 units on a single power line
  • Power factor: >0,95
BATTERY
  • Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
  • Re-charge connection: connection for external battery throught XLR 4p
  • Other: Voltage range: 22,4V-33,6V
PHYSICAL
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • IP rating: 20
  • Dimensions (WxHxD): 235x360x260mm / 9.25''x14.17''x10.24''
  • Weight: 6kg / 13.23lbs

BOX CONTENT

  • 1 x ECLFRESNELJTW
  • 1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
  • 1 x ECLFRSPG
  • 1 x ECLFRSJBD
  • 1 x ECLFRSJTPG
  • User Manual
