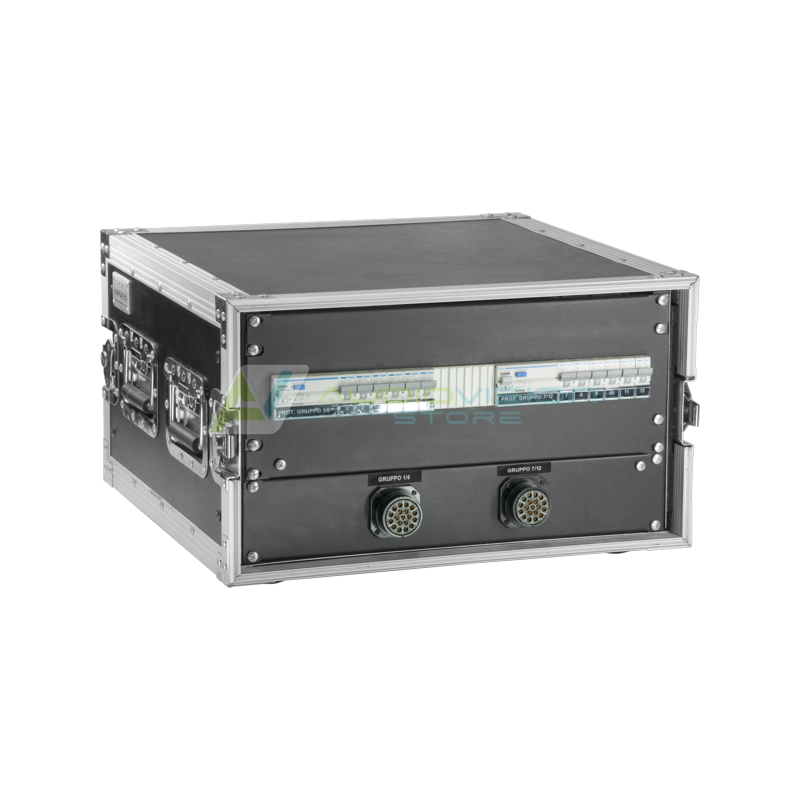

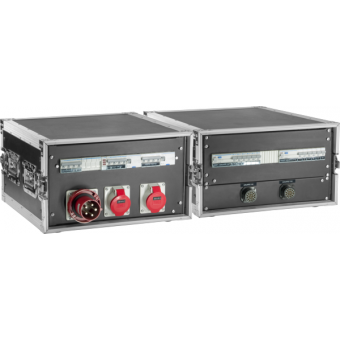

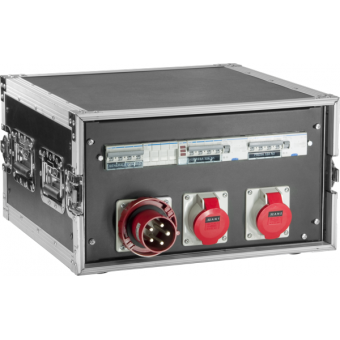

Power distribution box, 63A 5p input plug
Features:Structure:
6U 19'' rack, 9mm plywood, 2 openings
Inner metal foil protective covering
Dimensions (WxHxD): 55x33x72 cm
Input:
63A-5p (3P+N+E) panel mount CEE plug, 400V 50/60Hz IP67, 1pc (code 913315)
Output:
32A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 2pcs (code 912415)
Panel mount mult-ipin sockets 19P IP67 Socapex compatible, 2pcs (code 9262191FP)
Protection:
4P magneto-thermic switch , 4 modules, 63A curve C 10kA, 1pc
Residual current circuit breaker w overcurrent protection, 4P, 7 modules, 32A, curve C 6kA tipe A, 30mA, 2pcs
Magneto-thermic Switch 1P+N, 1 module, 16A curve C 6kA, 12pcs
Residual current circuit breaker w/o overcurrent protection, 4P, 4 mod, 40A tipe A, 30mA, 2pcs
Tools:
4P fuser block, 4 modules, 1pc (code 927114)
Triple LED indicator, 1pc
