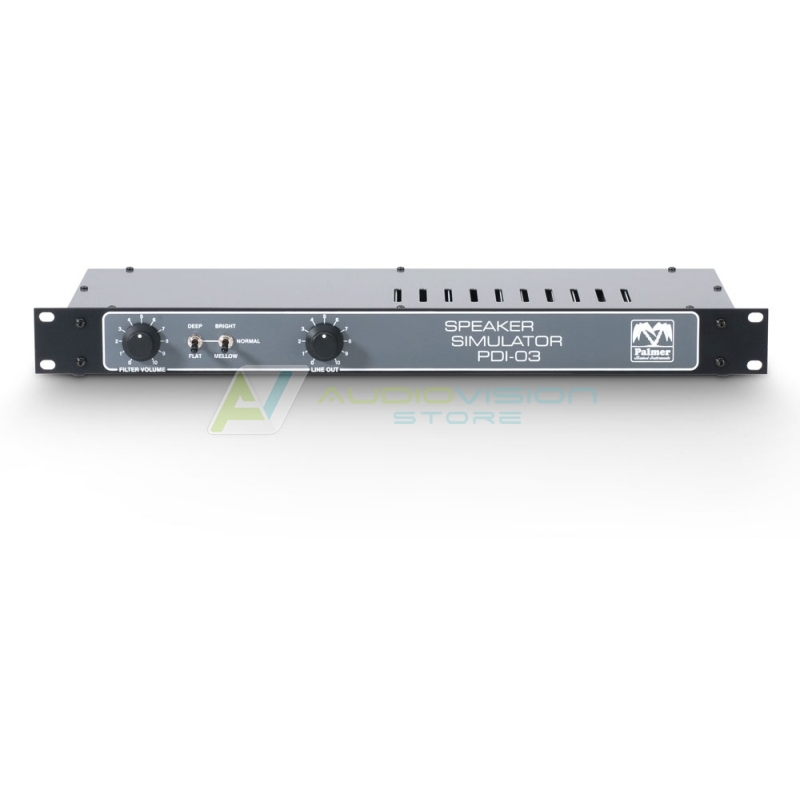

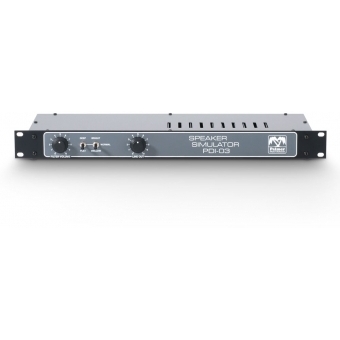

Palmer PDI 03 - Speaker Simulator with Loadbox 8 Ohms

Palmer PDI 03 - Speaker Simulator with Loadbox 8 Ohms
2425.83 Lei
1698.08 Lei
*pretul include TVA
La comanda
cod produs: PDI03
Descrierea Produsului

The Palmer Speaker Simulator PDi 03 - available in 2, 4, 8 and 16 Ohm

The PDI03 Palmer speaker simulator combines load impedance, a signal splitter and DI box especially designed for guitars. All functions are optimised for live and recording applications.

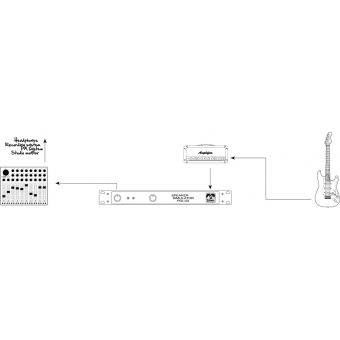

Instead of being connected to a loudspeaker, the PDI03 is connected directly to the amplifier output. The signal is no longer picked up by a microphone, but after passing through a special filter section is fed directly into a mixing console, tape recorder, etc. This permits power amplifiers to be operated to saturation without troublesome volume problems.

Two switches select between the 9 filter presets simulating various types of speakers and enclosures. Open back 2 x 12' combo or 4 x 12' cabinet characteristics and the punch of a full-out stack with a graphic EQ 'V' setting can be selected as well as 'American' or 'British' speakers and ultra brightness.

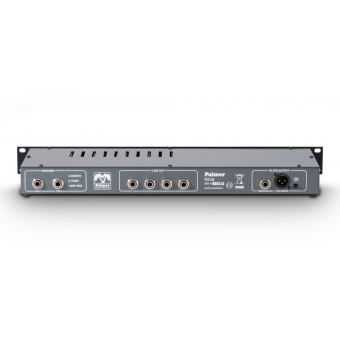

Four paralleled unfiltered outputs are available for further processing. Both filter and line out level are adjustable.

For live monitoring, speakers may be connected while the reactive load is automatically switched off. Power handling capacity is 100W RMS without speakers.

Product typeSpeaker Simulators
Input typeunbalanced
Input connectors6.3 mm jack
Output typebalanced, unbalanced
Outputs6( 2 x Filter / 4 x Line out)
Output connectors6.3 mm jack, XLR
Output impedance10 k (6.3 mm Jack) Ohm(s), 600 (XLR) Ohm(s)
Controlsfilter volume, line out, voicing
Dummy loadYes
Dummy load impedance8 Ohm(s)
Max. load100 W
Voicing filterYes
Power attenuatorno
Transformer isolated outputsYes
Cabinet materialsheet steel/aluminium
Cabinet surfacepowder coated/anodized
Width480 mm, 19 "
Depth180 mm
Height44.5 mm, 1 U
Weight2,959 kg
