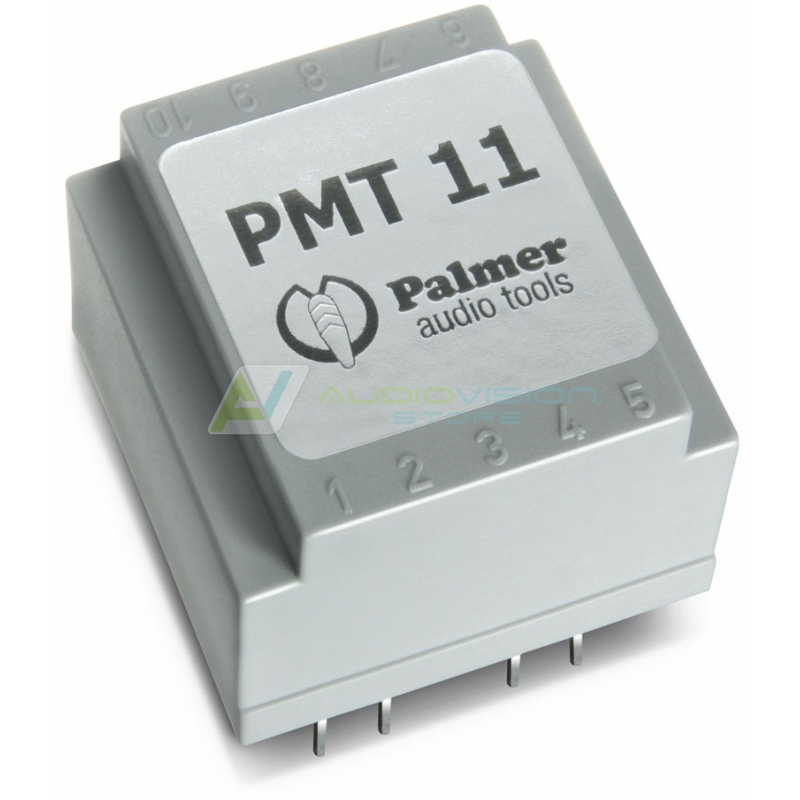

de la in 48 de rate fixe.Studio level line isolating transformer, also matches balanced and unbalanced lines. Electrostatic shielding, mu-metal shielding on request. PCB mount. PCB for 2 x PMT-11 available (#PCB-11). Technical specifications: Ratio 1 : 1 Impedance: 600 ohms : 600 ohms Frequency range: 20 Hz - 20 kHz, +/- 0,5 dB Level: + 20 dB max. Dimensions: (without pins): 35 x 34 x 25 mm
| Product type | Audio Transformers |
| Ratio | 1:1 |
| Source impedance | 600 Ohm(s) |
| Load impedance | > 600 Ohm(s) |
| Max. level | + 20 dB |
| Frequency response | 30 - 20000 Hz |
| PCB | PCB06 |
| Dimensions | EE32 mm |
| application | line isolator |
| Weight | 0,105 kg |
