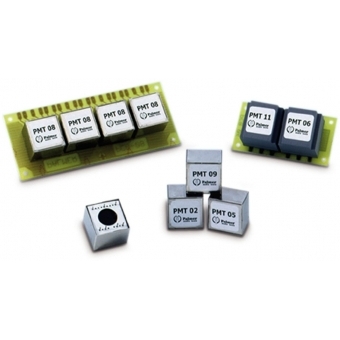

Palmer MT 09 - Mic Level Split Transformer 1:1+1

Palmer MT 09 - Mic Level Split Transformer 1:1+1
355.82 Lei
249.07 Lei
*pretul include TVA
La comanda
Palmer
cod produs: PMT09
Descrierea Produsului

Micropone split transformer, similar to PMT-05, 2 secondary windings. Electrostatic and mu-metal shielding, PCB mount. PCB for PMT-09 available (#PCB-09). Technical specifications: Ratio 1 : 1 Nominal iImpedance input and outputs: 200 ohms Frequency range: 40 Hz - 20 kHz, +/- 0,5 dB Level: + 4 dB max. Dimensions: (without pins): 30 x 30 x 20 mm

Product typeAudio Transformers
Ratio1:1
Source impedance200 Ohm(s)
Load impedance> 200 Ohm(s)
Max. level+ 4 dB
Frequency response40 - 20000 Hz
PCBPCB09
DimensionsEE25 mm
applicationmic split
Weight0,075 kg
