Palmer MCT DMX - 3-pin / 5-pin DMX and XLR Cable Tester

Palmer MCT DMX - 3-pin / 5-pin DMX and XLR Cable Tester
180.33 Lei
126.23 Lei
*pretul include TVA
La comanda
Palmer
cod produs: AHMCTDMX
Descrierea Produsului

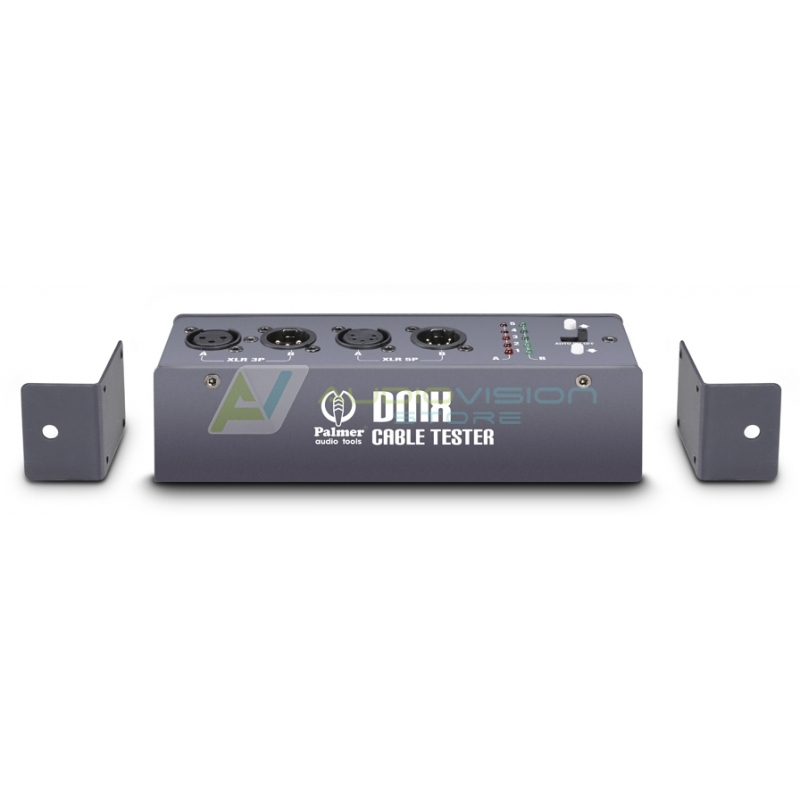

This cable tester checks 3-pin and 5-pin DMX cables for continuity in fully automatic or manual pin selection modes. Pin connection status of the male and female cable ends is indicated by two rows of bright LEDs. In addition, the unit’s 3-pin connectors can also be used to test XLR microphone cables. The DMX Cable Tester comes with two L-brackets for variable mounting options.

  • Tests 3-pin and 5-pin DMX cables for continuity
  • Also tests 3-pin XLR microphone cables
  • Automatic test mode or manual pin 1 - 5 selection
  • LED indicators
  • Mounting brackets included
Product typeTest Equipment
ConnectorsXLR (3-pin), XLR (5-pin)
ControlsAuto Scan, On / Off, Scan switch
IndicatorsLED chain

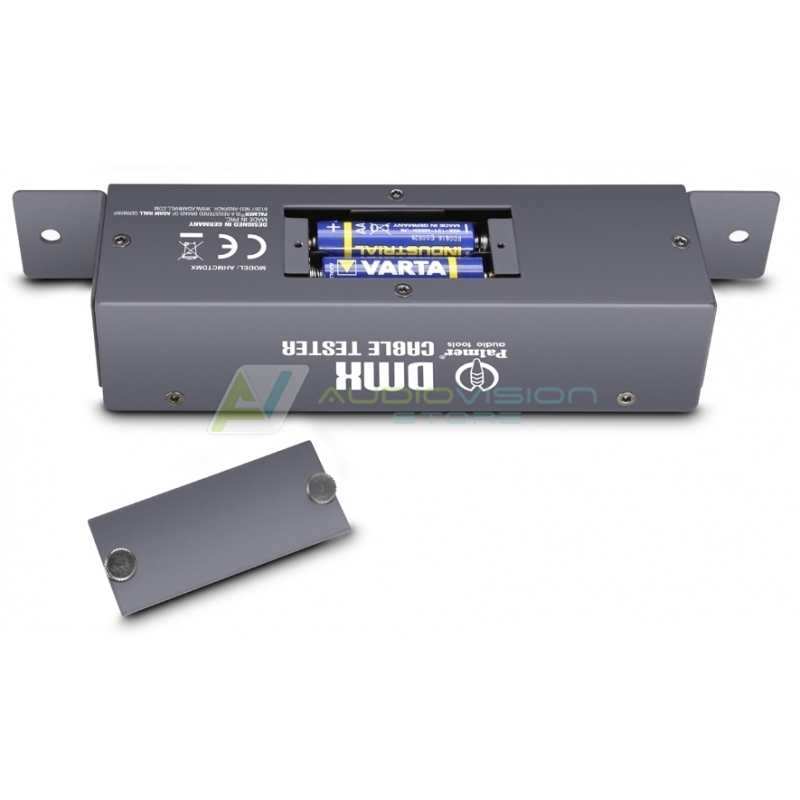

Operating voltage2 x AA battery
Acoustic continuity testno
Test cableno
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width240.2 mm
Height48 mm
Depth53 mm
Weight0,686 kg
