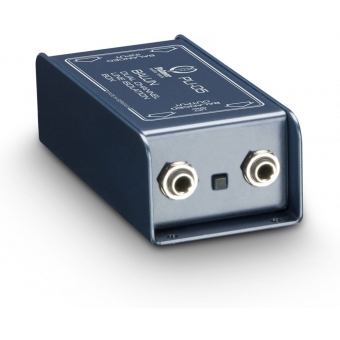

Palmer LI 05 - Line Isolation Box 2 Channel

Palmer LI 05 - Line Isolation Box 2 Channel
653.23 Lei
457.26 Lei
*pretul include TVA
La comanda
Palmer
cod produs: PLI05
Descrierea Produsului

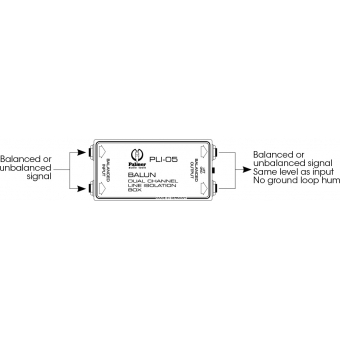

Balanced or unbalanced? That’s not a problem with the BALUN/PLI05. BALUN stands for balanced-unbalanced. This means that because the PLI05 uses TRS (stereo) jack sockets, both the input and output can be operated balanced or unbalanced. The PLI05 is the PLI02’s little sister. Both speakers can be used to convert from balanced to unbalanced. Both speakers include line isolation transformers for galvanic isolation. They are connected between mains-operated audio devices to prevent ground loop hum. The PLI02 is designed for using XLR connectors and built for low impedances (600 ohm). In contrast, the use of jack sockets means that the PLI05 is better suited to higher impedances. It can be operated in the broad range of 600 ohm to over 10 kilo ohm. However, in order to minimise level loss, the input impedance should not be lower than the output impedance.

Product typeLine Isolators
Channels2
Inputs2
Input connectors6.3 mm jack
Input typebalanced/unbalanced (depending on TS/TRS connection)
Input impedance10k Ohm(s)
Max. input level+ 6 dBu
Outputs2
Output connectors6.3 mm jack
Output typebalanced/unbalanced (depending on TS/TRS connection)
Output impedance600 Ohm(s)
Max. output level+ 6 dBu
Transformer balancedYes
Ratio1:1
Frequency response20 - 20.000 Hz
Cabinet materialDie-cast aluminum
Cabinet surfacePowder coated
Width120 mm
Depth60 mm
Height35 mm
Weight0,28 kg
