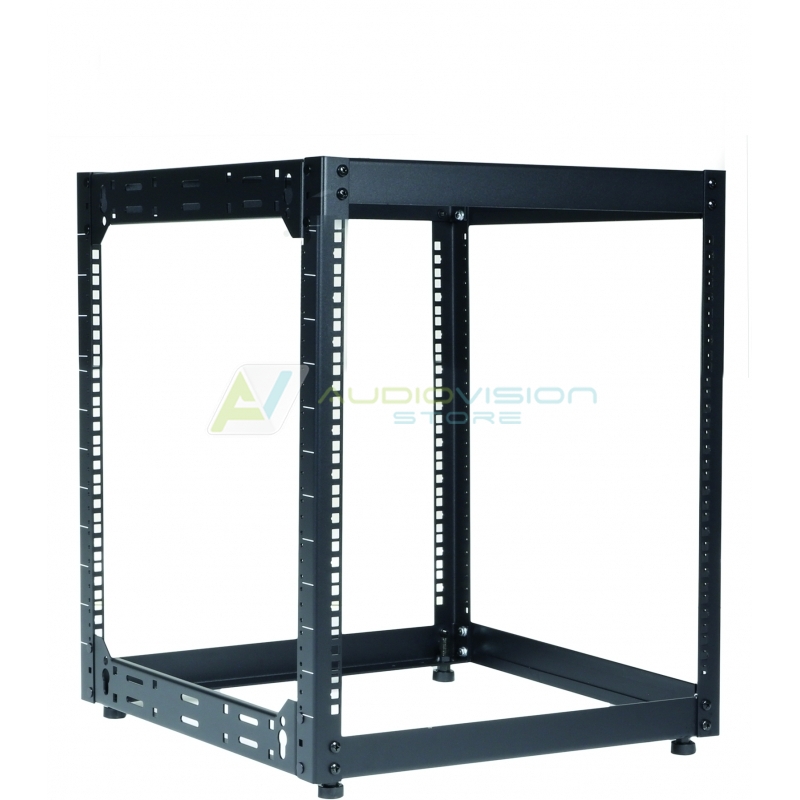

de la in 60 de rate fixe.The OPR512 is a professional and solid constructed open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 12 units of 19” equipment. The rugged construction made of 2.5 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a recordbreaking time.
| Unit height | 12 HE |
| Max usable depth | 500 mm |
| Max Load | 400 kg |
| Width | 518,4 mm |
| Depth | 514 mm |
| Height | 708 mm |
| Rack color | Black (RAL 9004) |
OPR512/B - Installation Manual (802.56 KB)
