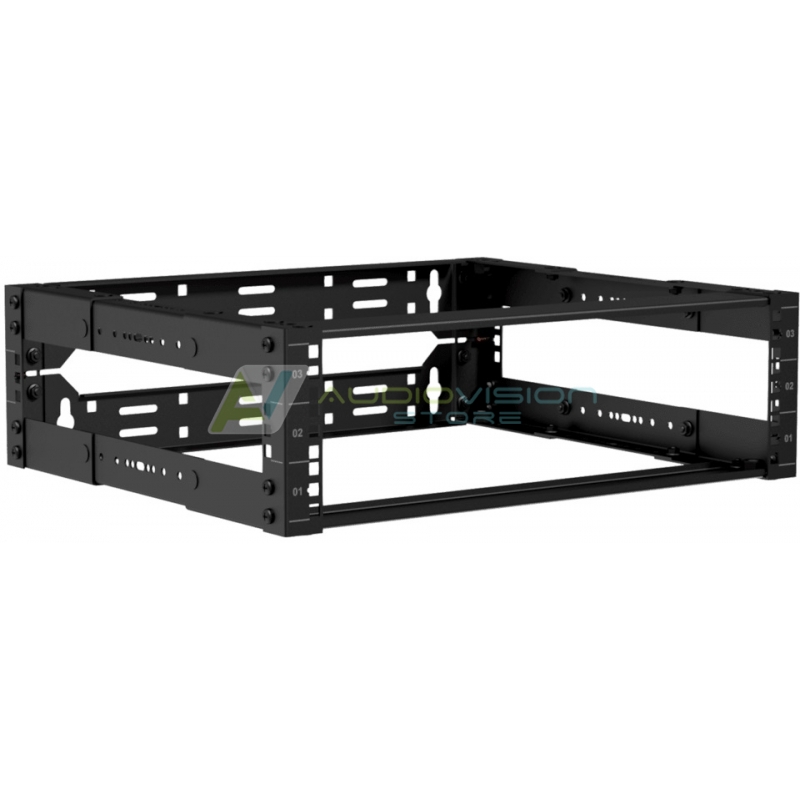

The OPR303A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 3 units of 19” equipment.
The open frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
Product features | ||||
---|---|---|---|---|
Unit height | 3 HE | |||
Max. usable depth | 300 ~ 450 mm | |||
Max. load standing | 100 kg | |||
Max. load hanging | 50 kg | |||
Dimensions | 520 x 158 x 300~450 mm (W x H x D) (excl. rubber feet) | |||
Colours | Black (RAL9004) | |||
Weight | 7 kg | |||
Accessories | Included | 4 x Levelling feet | ||
Accessories | Included | 4 x M8 expanding wall bolt | ||
Accessories | Included | 24 x Cage nuts + screws |
