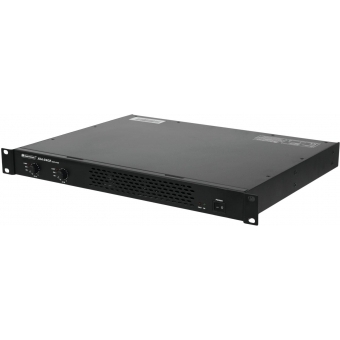

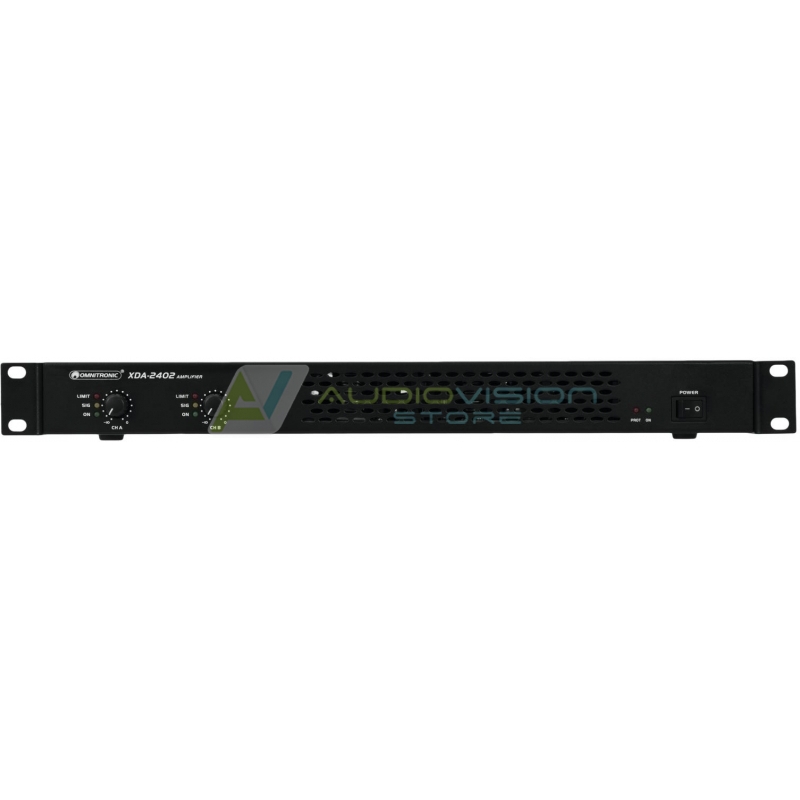

OMNITRONIC XDA-2402 Class D Amplifier

OMNITRONIC XDA-2402 Class D Amplifier
2114.46 Lei
1903.01 Lei
*pretul include TVA
In stoc furnizor
cod produs: 10451636
Descrierea Produsului

Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
  • Ground lift switch against humming
  • Fan cooling
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • Rack installation with 1 unit
  • Device type of construction: (19") 48,3 cm rack mounting
  • Height unit: 1 HE
  • Power supply of device: Mains Input Socket (M) P-Con (Power-In) provided fehlt
Power supply:230 V AC, 50 Hz
Power output (RMS):
stereo 4 ohms2 x 1200
stereo 8 ohms2 x 880
Distortion factor:<0.02 %
Voltage gain:36 dB at 8 ohms
S/N ratio:>100 dB
Input impedance:20 kohms (balanced), 10 kohms (unbalanced)
Input sensitivity:1.25 V RMS
Input connectors:2 x XLR
Output connectors:2 x Speaker, 2 x XLR feed-through output
Circuitry:class D
Control elements:power switch, level control per channel, ground lift switch
LED indicators:Protect, limit, signal, power
Protection circuits:Short-circuit, overheat, DC voltage, power on/off
transients, softstart
Construction:steel chassis
Dimensions (DxWxH):355 x 483 x 44 mm (19", 1 U)
Weight:6,4 kg
Power consumption:465 W 1/8 power
Power/channel (8 Ohm):880 W
Power/channel (4 Ohm):1200 W
Frequency range:30 - 20000 Hz
Height:4,45 cm
Depth:35,5 cm
Width:48,3 cm
