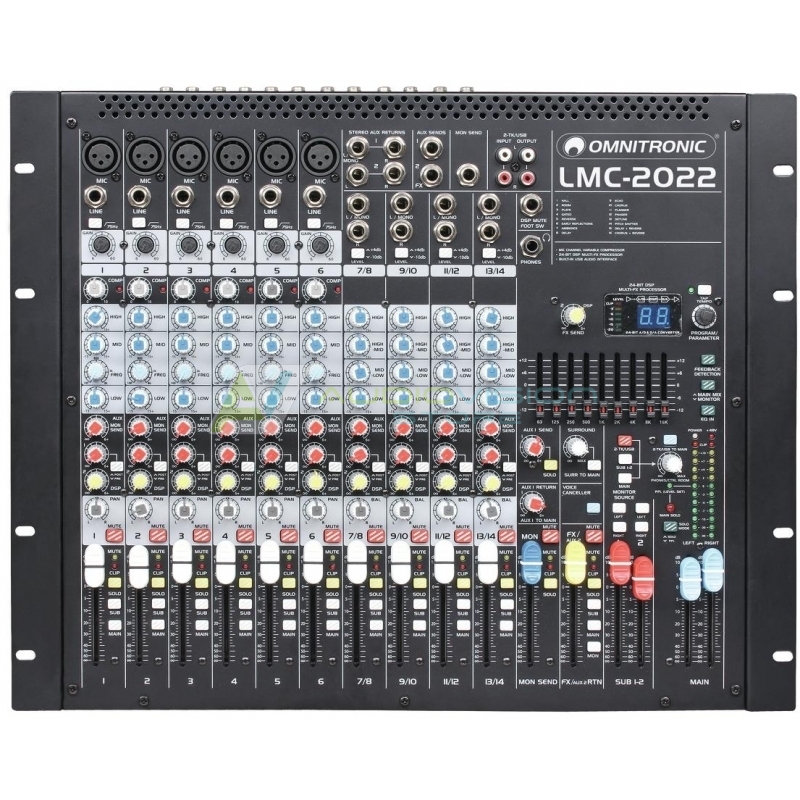

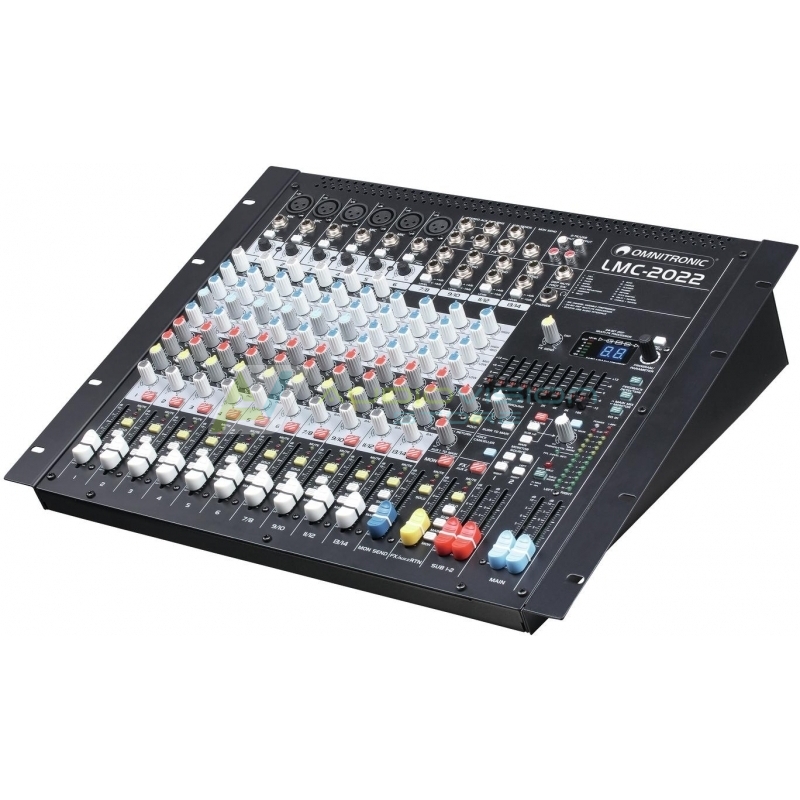

OMNITRONIC LMC-2022FX USB Mixing Console

Name: OMNITRONIC LMC-2022FX USB Mixing Console
Brand: Omnitronic
SKU: 10040283
Price: 2178.27 RON
Availability: InStock

~~2447.49 Lei~~ (-11%)

2178.27 Lei

*pretul include TVA

Stoc furnizor

Adauga in cos

Plata in rate super usor cu

de la in 60 de rate fixe.

Rate disponibile prin

Perioada	Rata lunara
60 luni	62,56 Lei / luna
48 luni	72,13 Lei / luna
36 luni	88,46 Lei / luna
24 luni	121,71 Lei / luna
12 luni	222,60 Lei / luna
6 luni	425,28 Lei / luna
4 luni	628,15 Lei / luna
3 luni	831,07 Lei / luna

Calculul este informativ. Valorile finale sunt stabilite in platforma Leanpay.

cod produs: 10040283

Adauga review

Adauga la Favorite
Compara
Alerta pret redus
Solicita informatii
Recomanda produs

Livrare gratuita
Consultanta de specialitate
Retur in 14 zile

Descriere
Review-uri

Descrierea Produsului

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

6 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
6 inserts for flexible connection of outboard equipment on each mono channel
4 stereo input channels with 4-way EQ, level selection and balance control
State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
Exceptional British EQs for warm and musical sound
Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
Intelligent feedback detection system makes eliminating feedback frequencies easy
Voice canceller filters out vocal portions for karaoke applications
Incredible 3D stereo surround effect for an enhanced listening experience
9-band stereo graphic EQ with illuminated faders allows tuning monitor or main mixes
3 AUX sends per channel: AUX 1 pre-fader for monitoring, AUX 2 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
2 subgroups with separate outputs for added routing flexibility
2 stereo AUX returns with flexible routing
Clip LEDs on all channels
Routing switches for mute, main mix, subgroup and solo/PFL on all channels
Balanced main mix outputs with 6.3 mm jack and gold-plated XLR connectors
Control room/phones outputs with multi-input source matrix
CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
Precise 12-digit LED level meter
BNC lamp socket
FX mute with remote control via footswitch
+48 V phantom power, can be switched centrally
Digital signal processor 24 bit with 16 effects
Monochrome 2 digit 7-segment LED display
The device can be connected via USB to the PC
(19") 48.3 cm rack installation possible
For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>110 dB
THD:	89 dB
Display type:	Monochrome 2 digit 7-segment LED display
Control elements:	Encoder, power switch, phantom power switch
Status LED:	Master level meter, clip, gain reduction, Mute, phantom power; power

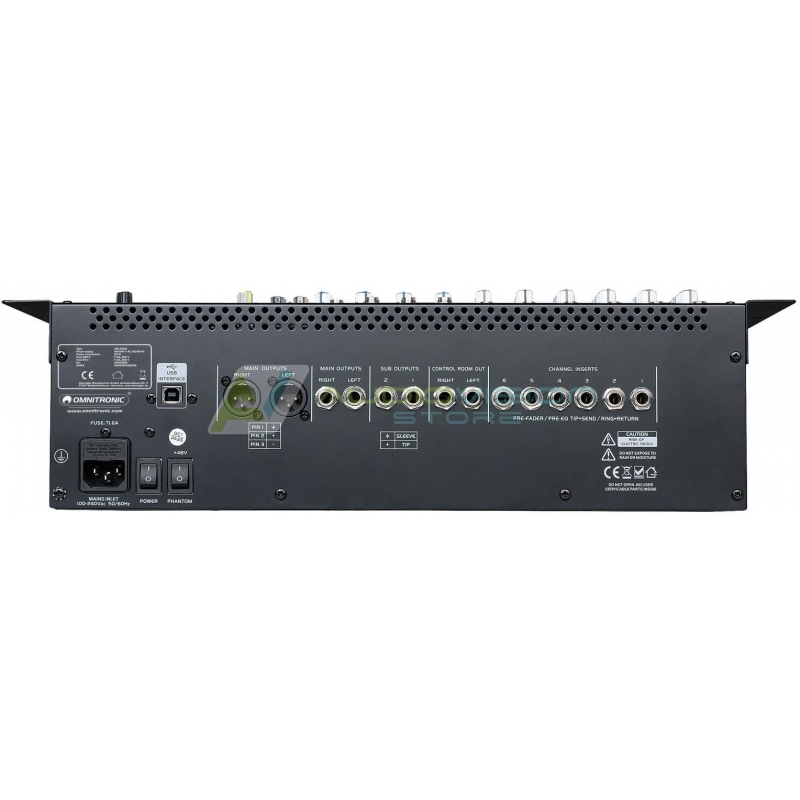

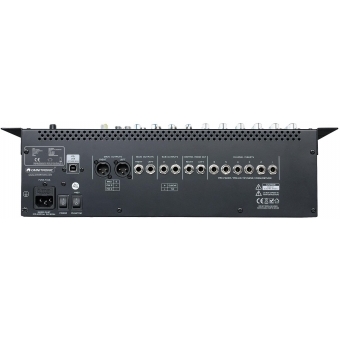

Connections:	Lamp via 1 x BNC (F) Input: microphone via 6 x 3-pin XLR Input: line via 14 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 2 x 6.3 mm jack socket (mono) mounting version Output: sub groups via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 3 x 6.3 mm jack socket (mono) mounting version Output: foot control via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX returns via 4 x 6.3-mm-jack (bal.) Insert: channel via 6 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input channel: 6 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-Poti with semiparametric mid-band EQ ±15dB at 80Hz/100-8kHz/12kHz, 3 Send/AUX, pre-post switch, adjustable single-knob compressor, mute control, routing sub group bus switch, routing master bus switch, low cut switch, panoramacontol, gain control, solo switch Input channel: 4 x stereo via jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 3 Send/AUX, pre-post switch, routing sub group bus switch, routing master bus switch, mute control, solo switch, low cut switch, balancecontrol, Input sensitivity switch Master output: 1 x stereo, channel control via 60mm fader, graphic equalizer 9-band EQ ±12dB at 63/125/250/500Hz 1/2/4/8/6kHz
Crossover frequency:	High-pass 75 Hz, 18db/oct
Max. level:	Output: master +28 dBu, bal. Output: sub groups +22 dBu, unbal. Output: control room +22 dBu, unbal. Output: rec. +22 dBu Output: headphones +19 dBu, unbal. Output: AUX sends +22 dBu, unbal.
USB port:	Type B
PC connect:	Via USB
Housing design:	(19") 48.3 cm rack installation possible
Dimensions:	Width: 48.3 cm Depth: 40 cm Height: 12.7 cm
Weight:	6.25 kg
