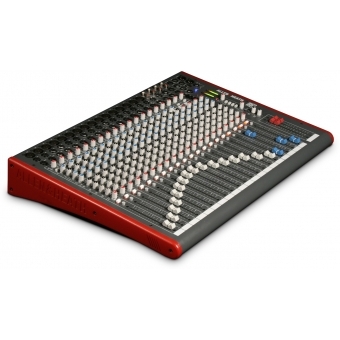

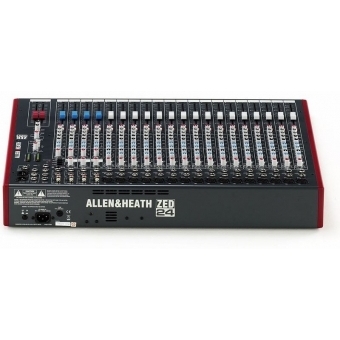

Mixer Allen & Heath ZED 24

Allen & Heath
cod produs: ZED 24
La comanda
3397.00 Lei
*pretul include TVA

Descrierea Produsului

ZED-24 este un mixer extrem de avansat pentru nivelul lui,  – are 23 de surse independente pentru a putea mixa, 10 iesiri independente, 4 auxiliare, configurabile prin USB audio in/out ceea ce il face usor configurabil pentru inregistrari, playback si efecte printr-o intrare duala si numeroase facilitati de monitorizare. De fapt, Zed-24 este atât de plin de functii, încât ai crede c? ar costa mult, mult mai mult!

16 mono channels

Neutrik mic XLR

Neutrik 1/4 inch jacks

Channel insert

Super wide gain "DuoPre" mic line input

3 band EQ with MusiQ

4 auxes

Illuminated mute

Sound image pan

Illuminated PFL & peak warning indicator

ALPS 100mm faders

4 stereo channels with 2-band EQ and inputs for extra sources

Stereo returns & playback

All inputs with level control

12 bar meters

Mono/stereo function on auxes 1&2

Monitor output section

Alt stereo output source

Configurable USB stereo audio in/out

Cakewalk SONAR LE bundled with mixer

Rack ears available

USB audio flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:

Send options:

1) Main Mix Left + Right (Post master Level)
2) Aux + FX bus (Aux is a pre-fade send, FX is a post-fade send)
3) Record Bus Left + Right (Separate stereo bus to Main Mix)

Return Options:

1) To Playback input (through jack socket break contacts)
2) To Stereo 2 channel (through jack socket break contacts)


ZED-24 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.


Based on the proven pre-amps from the hugely successful PA series, ZED-24 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a
higher input impedance.

SONAR LE – Provided Free!

We"ve included Cakewalk SONAR LE with ZED-24 so you can immediately start to use it to create your own music – just add a PC and it couldn"t be easier to get going. You"ll be able to record from your ZED mixer, create tracks and arrange songs, then play back to ZED via the USB port. You can use SONAR LE and your ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.

Key Features

Powered by SONAR 8.5

32 audio tracks

64 MIDI tracks

8 simultaneous inputs and outputs

24-bit/96kHz audio quality

24 simultaneous effects

8 simultaneous virtual instruments

Specificatiile Produsului

  • Intrare USB Nu
  • Numar canale >12 canale
  • Tip mixer audio Mixer scena (live), Mixer instalatii
