M2 - Multimedia digital audio mixer

M2 - Multimedia digital audio mixer
Pret la cerere
In Stoc
Audac
cod produs: M2
Descrierea Produsului

The M2 is a multi-media audio distribution system which offers an unseen flexibility and amount of possibilities for any audio distribution system. It can handle a diverse array of input signals and has enough DSP power to apply the most modern filters, effects and other options. In general, the M2 is an 9 x 8 digital audio mixer, which is based on 11 powerful DSP processors. It is fully digitally controllable through a web browser interface, optional touchscreen display, wall panels and Android or IOS apps. Using the freely available AUDAC Touch™ application for smart devices guarantees total system control and configuration from any device on any location and at any time. The built-in digital mixer makes it possible to mix all input signals together and patch them to any of the outputs. What makes the M2 superior to all other digital audio matrixes is the superior DSP power and advanced software. It contains 8 balanced stereo inputs with Automatic Level Control (ALC) where to any Line or Microphone level source can be connected. Other functions which can be applied to the inputs are: Noise Gate, Filters, 5 Band Parametric EQ, and Phantom power. The zone outputs are balanced stereo outputs with the possibility to integrate an optional Power Amplifier Kit (POW2). The outputs are switchable between Mono / Stereo and also have the possibility to apply many other functions such as Delay, Restricting the audio level, 5-Band Parametric EQ and Filters. Together with the audio outputs, one output relay (NO / NC contacts) is provided for every zone. This can be used for controlling external devices such as emergency lights, bypassing volume controllers, ... All audio inputs can be mixed to the outputs. To keep a clear overview of all these functions, they can be grouped to different scenes. With these scenes, it will be possible to recall all the right settings by one single action. Some of the many other features are: 10 programmable contract inputs, 256 Pre-programmed events, fiber optical interface (option), 7” Touchscreen display kit (option), ... The AUDAC APM paging tables are designed to create a powerful and flexible paging solution in combination with the M2.

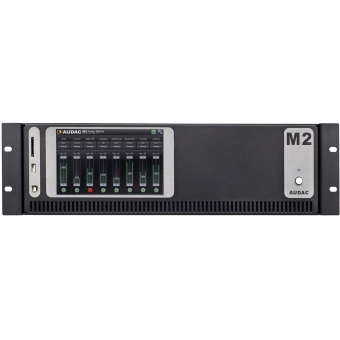

Note: The AUDAC M2DIS interactive 7" touch-screen display kit shown on some promotional images of the M2 is an optional expansion kit not included in the standard M2.

Highlights

  • Compatible with AUDAC Touch™
  • 9 x 8 digital Audio Matrix
  • Powerful DSP Processor for every channel
  • 8 Balanced stereo line outputs
  • 4 unbalanced stereo line inputs
  • 8 Balanced stereo line inputs
  • 10 trigger contact inputs (NO or NC)
  • 2 priority inputs
  • 8 x Relay outputs (NO/NC)
  • Automatic Level Control
  • Parametric EQ, Delay
  • Fully digitaly controllable
  • RS232 & TCP/IP control port
  • Remote control web interface
  • Wall panel inputs

Applications

  • Clubs, bars, restaurants
  • Hotels
  • Public facilities
  • Houses of worship
  • Corporate spaces
  • Residential

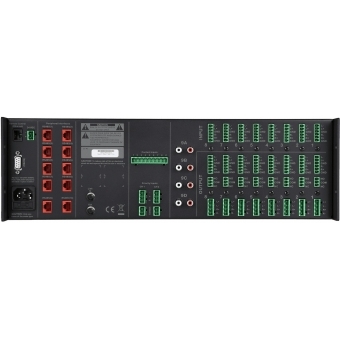

System specifications
Inputs Balanced Mic./Line Type 8 x Balanced Stereo Input (Mic./Line)
Inputs Balanced Mic./Line Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Inputs Unbalanced Stereo Type 4 x Stereo Unbalanced Line
Inputs Unbalanced Stereo Connector RCA
Inputs Peripheral Interface Type 10 x Peripheral Interface Input
Inputs Peripheral Interface Connector RJ45
Inputs Priority Contact Type 2 x Priority Contact Input
Inputs Priority Contact Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Inputs Contact Type 8 x Contact Input
Inputs Contact Connector 9-pin Euro Terminal Block (Pitch - 5.08 mm)
Outputs Balanced Stereo Type 8 x Balanced Stereo outputs
Outputs Balanced Stereo Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Outputs Power Amplifier Type 8 x Power Amplifier outputs (option)
Outputs Power Amplifier Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Outputs Relay Type 8 x Relay outputs (NO/NC)
Outputs Relay Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Control Front panel (M2DIS Display option)
Control TCP/IP (RJ45)
Control Wall panel (RS-485)
Control Audac Touch™
Control Web (HTML5)
Control Web (Flash)
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Balanced Priority Audio Type 2 x Balanced Priority Audio Input (Line)
Inputs Balanced Priority Audio Connector 3-pin Euro Terminal Block (Pitch - 5.08 mm)
Control RS-232
Product features
Dimensions 482 x 132 x 350 mm (W x H x D)
Weight 8.850 kg
Mounting 19” Rack
Unit height 3 HE
Optional expansion kit M2DIS (7” Touchscreen display kit)
Optional expansion kit POW2 (Internal Power Amp 16 x 60 W)
Optional expansion kit OPT2 (Fiber interconnection Interface)
Peripheral Interfaces DW5065 All-In-One Wall Panel
Peripheral Interfaces DW3020/4020 Wall control panel
Peripheral Interfaces APM1xx Digital Paging Consoles
Specificatiile Produsului
  • Intrare USB Da
  • Numar canale 8 canale
  • Rack mountable Da
  • Tip mixer audio Mixer digital
