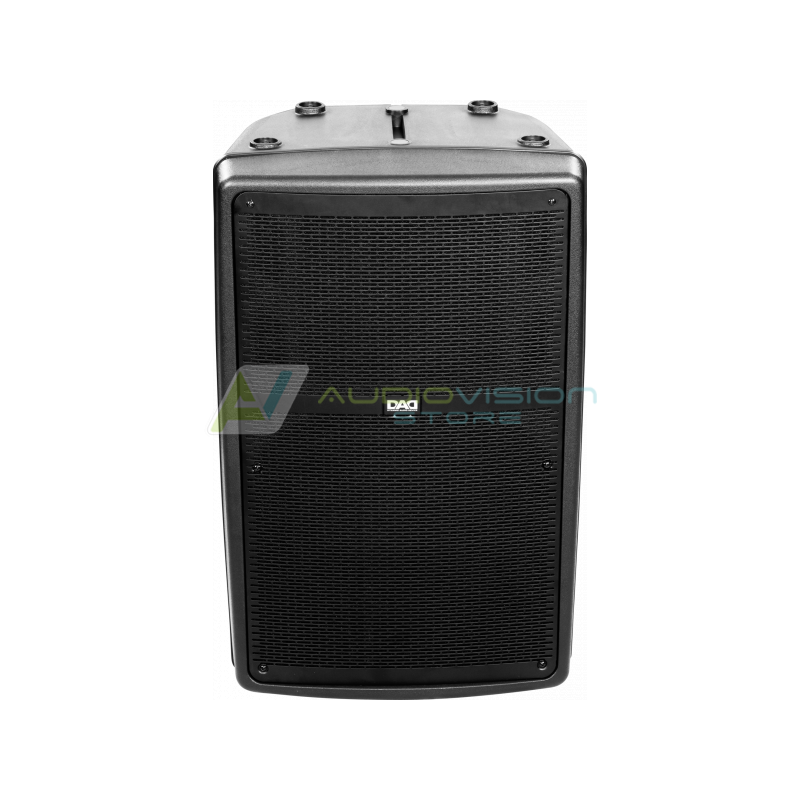

Active loudspeakers, D+AB class bi-amp, 2-way 450 W+50 W, 128db SPL
Features:Low frequency: 15'' Nd woofer/3''v.c.
High frequency: 1'' Nd driver/1.7''v.c.
Frequency response: 55-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction of voice and music for live and recorded performances
Cabinet material: polypropilene
For sound installations in environments requiring dynamics and sound pressure
LOUDSPEAKERSystem type:
active 2 way
FEATURESBuilt-in amp LF/HF:
450+50
W
/4/8Ohm
SPL max:
128
dB
@1m (free field)
ACOUSTICAL SPECIFICATIONSSPL cont/peak:
122/128
dB
@1m (free field)
Frequency response:
55-18000
Hz
(±3dB)
Coverage angle HxV:
80x60
°
Cross over frequency:
1500
Hz
ELECTRONICSAmplifier:
digital + AB class
Power:
450+50
W
/4/8Ohm
Input sensitivity:
4 dBu (1,228Vrms) adjustable
Protection:
limiter temp.
User controls:
mic, line, master, eq LF-HF
Built-in DSP:
54
bit
- sampling rate 48kHz
Operating voltage/frequency:
220 V~240 V/50 Hz

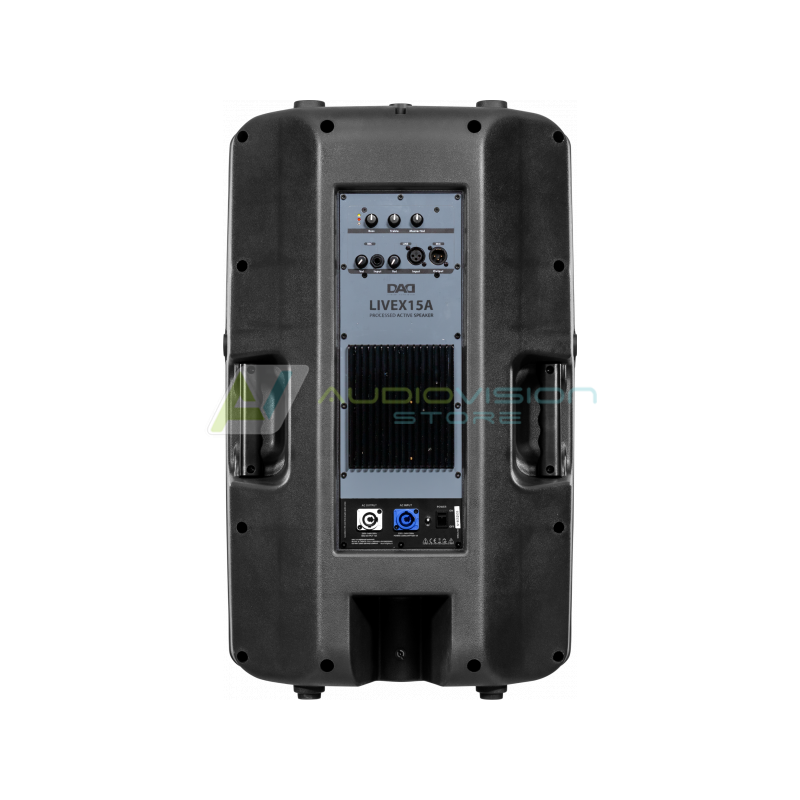

INPUT/OUTPUT CONNECTORSInput signal:
XLR IN/OUT, jack 6.35 mm
Power connection:
type power-con
PHYSICALDimensions (WxHxD):
475x740x400
mm
Weight:
23.5
kg
