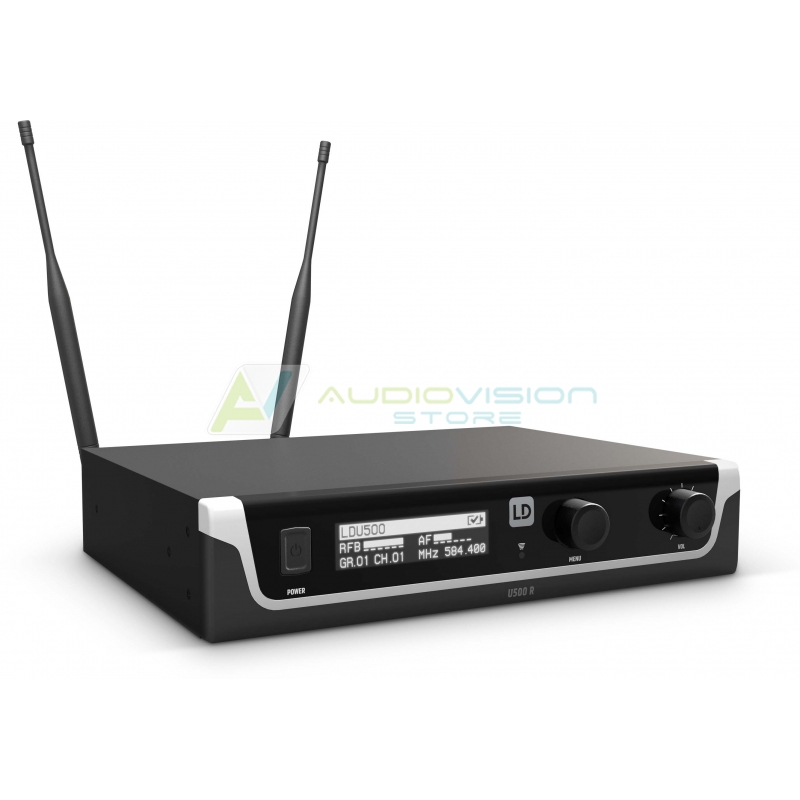

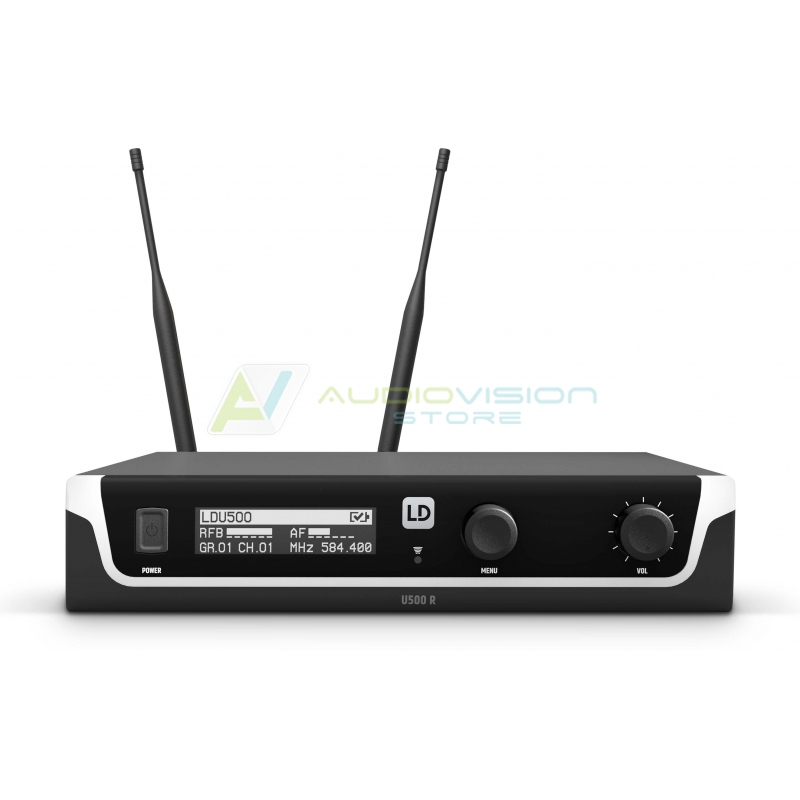

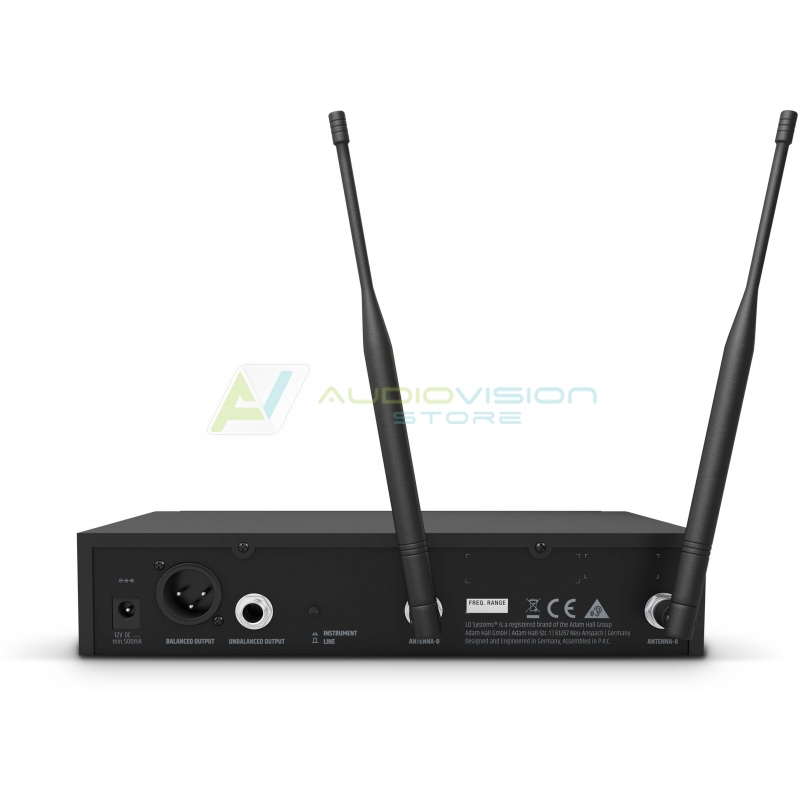

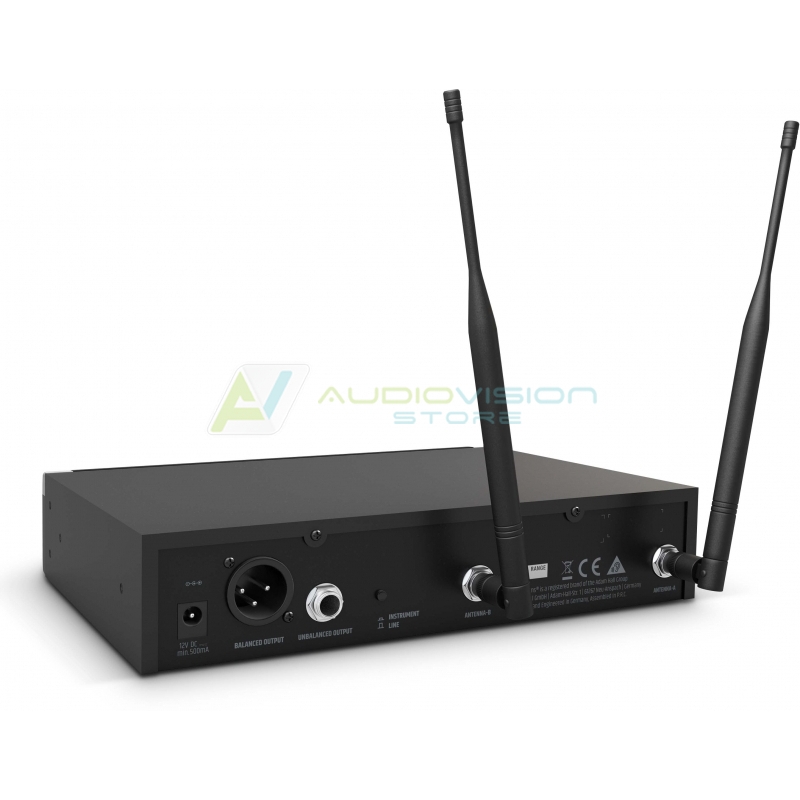

LD Systems U506 R - Receiver

LD Systems U506 R - Receiver
1210.60 Lei
847.42 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDU506R
Descrierea Produsului

We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.

With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.

Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.

U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.

The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.

Product typeWireless Microphone System Accessories
Typetrue diversity
Modulation TypeFM
Transmission frequency range655 - 679 MHz
Channels96 (8 groups of 12 channels)
Antenna inputs2
Antenna connectorBNC
Frequency response30 - 16000 Hz
Noise reductionSquelch
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio> 100 dB
Audio output, balancedbalanced XLR - 12 dBV / 6.3 mm TRS - 18 dBV
Audio output, unbalanced6.3 mm jack
Max. output level+10 dBu
Controlsdigital encoder, Power On/Off, volume
IndicatorsOLED Display
Operating voltage12 - 18 V DC, 12 V DC, 500 mA
Width212 mm
Height44 mm
Depth159 mm
Weight0,85 kg
Accessories (included)2 x antenna, Audio cable, power adapter
Other featureschannel search function, IR frequency synchronisation, Pilot tone
