The new LD Systems MEI 100 G2 In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 823 – 832 and 863 – 865 MHz bands.
The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 80Hz - 15 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD MEI 100 G2 permits simultaneous operation of up to 5 systems.

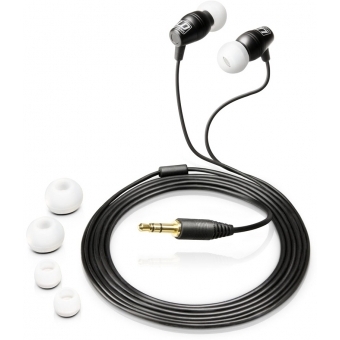

Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more. The MEI 100 G2 package includes high-quality earphones, a 19" rackmount kit, and a rugged transport box made of ABS plastic.
* license-free: ISM band license-free in Europe, please check duplex gap for your specific country
| Product type | In-ear Monitoring |
| Transmission frequency range | 823 - 832 MHz, 863 - 865 MHz |
| Product type | In-ear Monitoring Accessories |
| Type | Receivers |
| Transmission frequency range | 823 - 832 MHz, 863 - 865 MHz |
| Channels | 96 (8 groups of 12 channels) |
| Transmission method | FM, stereo |
| Frequency response | 80 - 15000 Hz |
| Total Harmonic Distortion (THD) | 0.25 % |
| Audio output | 3.5 mm TRS |
| Max. audio output level | 100 mW |
| Controls | Down, Set, Up, volume |
| Indicators | LC display, RF (LED) |
| Operating voltage | 2 x 1.5 V AA |
| Operating time | > 10 h |
| Width | 65 mm |
| Height | 95 mm |
| Depth | 25 mm |
| Weight | 0,1 kg |
| Features | incl. batteries |
| Product type | In-ear Monitoring Accessories |
| Type | Transmitters |
| Transmission frequency range | 823 - 832 MHz, 863 - 865 MHz |
| Channels | 96 (8 groups of 12 channels) |
| Modes of operation | mono/stereo |
| Transmission method | FM, stereo |
| Rated HF output power | 10 mW |
| Frequency response | 80 - 15000 Hz |
| Inputs | 2 |
| Input connectors | 6.3 mm jack, XLR |
| Input impedance (kOhms) | 8.5 kOhm |
| Antenna connector | BNC |
| Controls | AF Level (left/right), Down, mono/stereo, Power, Set, Up, volume headphone |
| Indicators | LC display |
| Operating voltage | 12 - 18 V DC |
| Width | 212 mm |
| Height | 38 mm |
| Depth | 90 mm |
| Weight | 1,1 kg |
| Accessories (included) | Antenna, Batteries, Headphones, Power supply |
