LD Systems ICOA 12 A BT W - 12“ Powered Coaxial PA Loudspeaker with Bluetooth, White

LD Systems ICOA 12 A BT W - 12“ Powered Coaxial PA Loudspeaker with Bluetooth, White
2765.52 Lei (-15%)
2350.69 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDICOA12ABTW
Descrierea Produsului

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

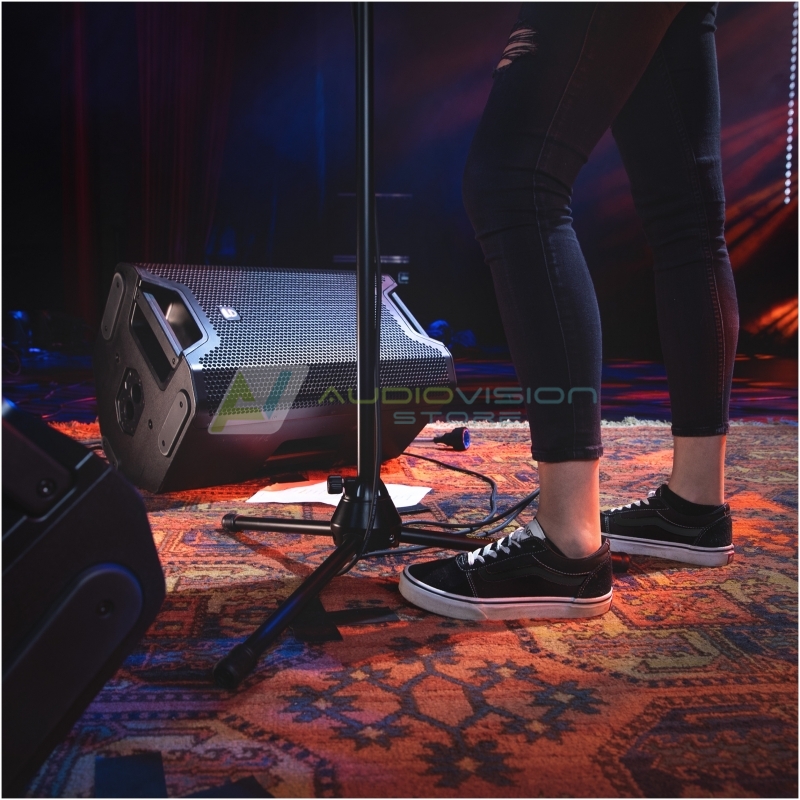

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

  • A genuine all-rounder for full-range, satellite and monitor applications
  • 126 dB max. SPL and 1200 W peak power

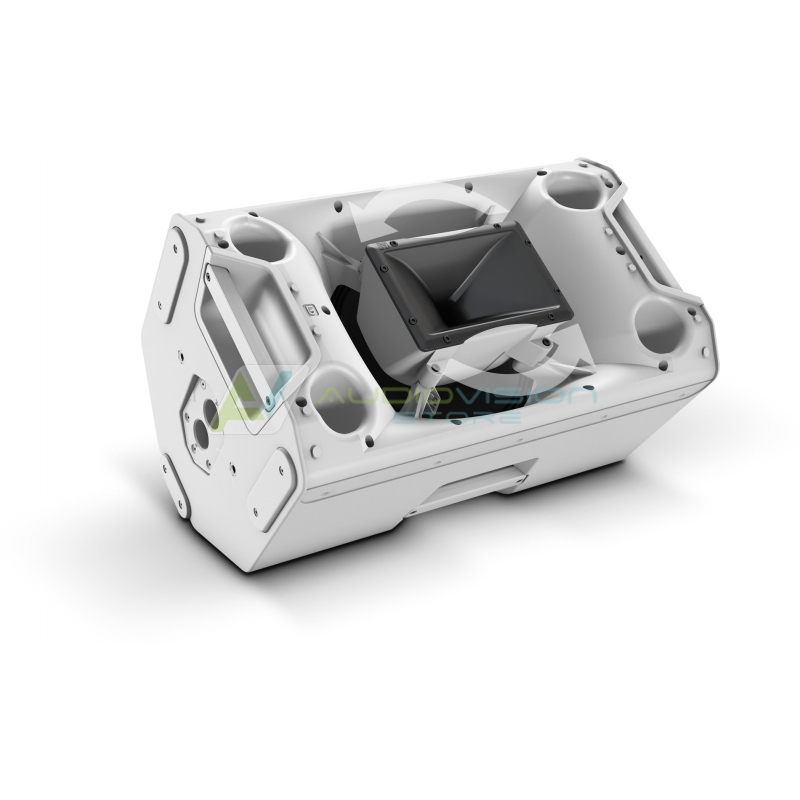

  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • DynX DSP with 4 presets, 3-band EQ and delay function

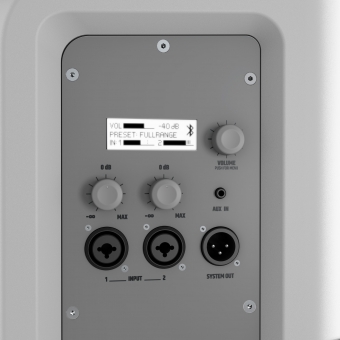

  • 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal protection of the speaker
  • 4 aluminium grips with ergonomic, rubber surface
  • Extensive, optionally available accessories for installation and transport
Product typePA loudspeaker
TypePowered
ColorWhite (RAL 9003)
Bluetooth Audio DecoderBluetooth 4.0
Low/mid Woofer dimensions12 "
Woofer dimensions (mm)304.8 mm
Woofer magnetFerrite
Woofer brandCustom-made
HornBEM optimized CD Horn
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1.4 "
HF driver voice coil35 mm
AmplifierClass D
Dispersion (H x V)90° x 50°
System Power (RMS)300 W
Peak power1200 W
Frequency response50 Hz - 20000 Hz
Crossover frequency kHz2 kHz
Max. SPL (Peak)126 dB
Protection circuitsMultiband limiter
Protection circuitsover voltage
Protection circuitsover-current
Protection circuitsthermal overload
Controls2 x gain
ControlsOn / off switch
ControlsRotary/push encoder
IndicatorsLC display
Mic/ line inputs2
Mic-/ Line Input Connectors6.3 mm jack Combination sockets (symmetrical)
Mic-/ Line Input ConnectorsXLR
Line inputs1
Line input connectors3.5 mm TRS
Line outputs1
Line output connectorsXLR
Operating voltageSMPS
Power consumption150 W
Ambient temperature (in operation)0 - 40 °C
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Relative Humidity< 80 %, not condensing
FuseT4AL 250 V
Cabinet materialPolypropylene
Cabinet constructionBass Reflex
Mounting36mm flange (0°, 5°)
Mounting6 x M10 flying points
Monitor angle55 °
Width375 mm
Height635 mm
Depth396 mm
FeaturesBluetooth
Weight19,95 kg
Accessories (included)Power cord
