LD Systems DAVE 18 G4X - Compact 2.1 powered PA system

LD Systems DAVE 18 G4X - Compact 2.1 powered PA system
11073.16 Lei (-15%)
9412.19 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDDAVE18G4X
Descrierea Produsului


Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need an all-round PA that delivers professional sound for a variety of applications. Also on your list of essentials: a wide range of connections and accessory options for fast and flexible on-site setup, and maximum reliability. In a nutshell, your PA has to perform at its best around the clock.

With the DAVE 18 G4X, your search is over. This powered compact PA - which is made up of an 18" subwoofer and two 8" satellites (total power: 4000 W peak) - doesn't just deliver a new, modern design with numerous handling optimisations. It also offers an integrated 6-channel mixer with all the important input options you could ever need. This allows you to create a wide variety of setups and combinations of instruments, vocals and audio sources - both wired and wireless - thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.

The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs, and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.

The DAVE 18 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to expand your performance setup with a media player, computer or smartphone, which you can use to play and control backing tracks, sound effects or music during your breaks. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.

Speaking of impressive sound, the DAVE 18 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, colourless sound that brings the DAVE Series to a whole new level. The subwoofer, for example, is equipped with a larger voice coil and an optimised bass reflex system to reduce air flow noise to a minimum.

The DAVE 18 G4X is predestined for flexible use. The selectable mode presets (for classic stereo use or set up with two closely spaced satellites on a T-stand above the subwoofer) contribute to this - the DAVE G4X is convincing in terms of sound in all configurations. For example, the Cluster Mode preset allows the interference-free coupling of two satellites by means of a special M/S split and reproduction of the stereo signal for more headroom and directivity.

LD Systems has also thought of all common applications when it comes to accessories. These range from custom-fit bags and a castor board to the T-stand mentioned above.

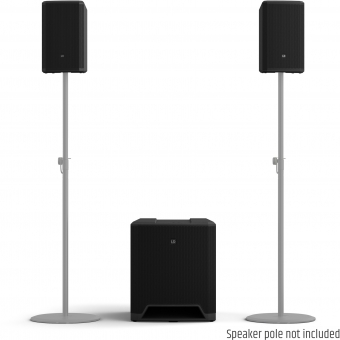

  • Powered 2.1 PA with 18" subwoofer and two 8" satellites
  • Total power: 4000 W
  • Integrated 6-channel mixer with EQ and reverb
  • Selectable input for microphone, Hi-Z or Line
  • Digital SPDIF TOSLINK stereo input
  • Wireless streaming via Bluetooth
  • Homogeneous dispersion thanks to newly developed waveguides
  • DynX® DSP (Gen.2) for distortion-free sound reproduction
  • Selectable presets depending on the setup (stereo / cluster mode)
  • Durable polyurea coating for subwoofer and satellites
Product typePA Complete Systems
TypePowered
ColorBlack
System output (RMS)2000 W
System output (Peak)4000 W
Max. SPL (Avarage)126 dB
Max. SPL (Peak)134 dB
Frequency response (-10dB)30 - 20000 Hz
Crossover frequency105 Hz
Dispersion (H x V)90° x 30 °
Weight63,2 kg

Subwoofer

Low/mid Woofer dimensions18 "
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil4 "
Woofer voice coil (mm)100 mm
Cabinet constructionBass Reflex
Cabinet material15 mm Multiplex
Cabinet material18 mm Multiplex
Cabinet surfacePolyurea
Subwoofer width545 mm
Subwoofer height640 mm
Subwoofer depth665 mm
Subwoofer weight43.8 kg
Subwoofer features3 Reverb presets
Subwoofer features6 channel mixer
Subwoofer featuresBluetooth
Subwoofer featuresCluster / Stereo Preset
Subwoofer featuresM20
Subwoofer featuresSPDIF
Carrying handles2

Mid/Hi System

Midrange dimensions8 "
Midrange magnetFerrite
Midrange brandCustom-made
Midrange voice coil2 "
Midrange voice coil50 mm
HornCD Horn
Tweeter dimensions2 x 0.5 "
Tweeter dimensions (mm)2 x 12.7 mm
Tweeter magnetNeodymium
Tweeter brandCustom-made
Tweeter voice coil1 "
Tweeter voice coil (mm)25.4 mm
Mid/Hi system impedance4 Ohm(s)
Mid/Hi system speaker connections1
Mid/Hi system speaker connectionsSpeakon compatible
Cabinet construction mid/highBass Reflex
Carrying Handles Mid / Hi System1
Mid/Hi system cabinet material12 mm Multiplex
Mid/Hi system cabinet material15 mm Multiplex
Mid/Hi system cabinet surfacePolyurea
Mid/Hi system width275 mm
Mid/Hi system height470 mm
Mid/Hi system depth260 mm
Mid/Hi system weight9.7 kg
Mid/Hi system featuresDual - Tilt flange
Mid/Hi system featuresMidrange Waveguide

Amplifier module (integrated in subwoofer)

AmplifierClass D
Amplifier output subwoofer (RMS)1000 W
Amplifier Output Mid/Hi (RMS)2 x 500 W
Protection circuitslimiter
Protection circuitsoverload
Protection circuitsshort circuit
CoolingPassive
Operating Temperature0°C - 40 °C
Humidity Range< 80 % ( non-condensing )
ControlsInput type
ControlsInput volume
ControlsLow / High EQ
ControlsMain volume
ControlsPower
ControlsReverb
ControlsStereo / Cluster mode
ControlsSub / High level
IndicatorsLimit
IndicatorsPower
IndicatorsProtect
IndicatorsSignal
Power connectorIEC
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power consumption600 W

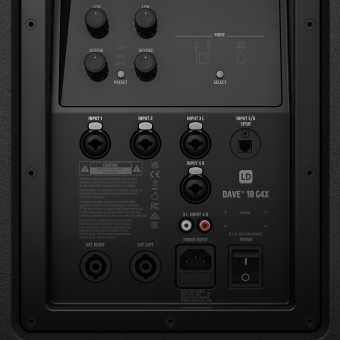

Multi input2 x switchable (MIC, LINE, HI-Z)
Multi input connectorCombo XLR
Line inputs2
Line input connectorsCombo XLR
Line input connectorsRCA
Digital inputs2
Digital input connectorsSPDIF
Loudspeaker outputs2
Speaker output connectionsSpeakon compatible
Bluetooth StandardA2DP
Bluetooth Audio DecoderSBC
Bluetooth version5.0
