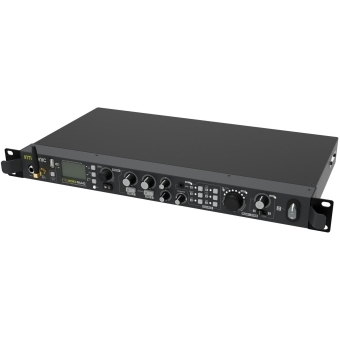

19" preamplifier with media player, DAB+, wireless audio, IR remote and RS485 control option
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | Max. 12 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1 mm² power cable |
| Fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >102 dB |
| THD: | 63 dB |
| Display type: | LCD display |
| Display reading: | Song title , play time elapsed , folder name , frequency |
| Control elements: | Power switch, level control, level control per channel, tone control, regular talkover; source selector, encoder, mute control, audio player, phantom power switch; sensitivity rotary dial, low cut switch, stereo/mono switch |
| Status LED: | Power, peak, channel source, ON AIR, level meter; Mute |
| Connections: | Input: line via 3 x stereo RCA Input: line via 2 x 6.3-mm-jack (bal.) Input: AUX via 1 x 3.5 mm jack (stereo) mounting version Input: microphone via 1 x 6.3-mm-jack (bal.) Input: microphone via 2 x screw plug-in terminal Output: master via 2 x screw plug-in terminal Output: zones via 2 x screw plug-in terminal Output: rec. via stereo RCA Mute function via screw plug-in terminal RS 485 via 1 x RJ-45 (F) mounting version Emergency via screw plug-in terminal Priority via screw plug-in terminal Antenna via 2 x SMA (F) mounting version |
| Channels: | Input channel: 3 x stereo via RCA, channel control via rotary dial, gain control Input channel: 1 x stereo via jack, channel control via rotary dial, gain control Input channel: 1 x stereo via jack, channel control via rotary dial Microphone channel: 1 x mono via screw plug-in terminal, channel control via rotary dial, gain control, phantom power switch, low cut switch Microphone channel: 1 x mono via jack or screw plug-in terminal, channel control via rotary dial, gain control, phantom power switch, low cut switch Master output: 1 x stereo via screw plug-in terminal, channel control via rotary dial, stereo/mono switch Zone output: 1 x stereo via screw plug-in terminal, channel control via rotary dial, stereo/mono switch |
| Music format: | MP3, WAV; FLAC, APE |
| Available storage media: | USB devices max. 64GB (FAT 32) |
| USB port: | USB 2.0, type B |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Mounting depth: | 23.5 cm |
| Dimensions: | Width: 48.3 cm Depth: 25 cm Height: 4.4 cm |
| Weight: | 3.35 kg |
| Remote control | |
| Battery: | 1 x button cell CR2025 (not included) |
