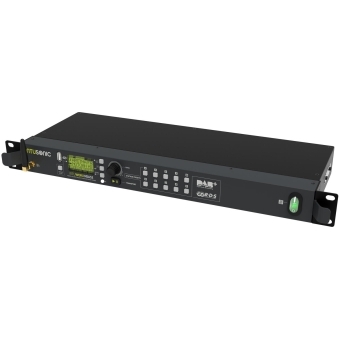

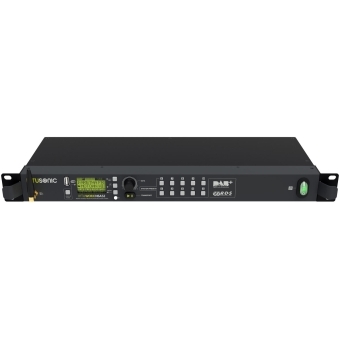

de la in 60 de rate fixe.The INTUWORX NSA52 is a versatile audio source unit, combining a USB-based MP3 player with an FM Tuner, a DAB+ tuner, a wireless audio receiver and a jingle player - all packed in a sleek 19"/1U case and operated via a clear and intuitive user interface built around a 124x64 pixel graphics display, with an included IR remote for enhanced comfort. The MP3 player is configurable, offering different sequence and repeat modes, and the display of either tag content or file name. The LINKOUSTIC 5.0 wireless audio link connects flawlessly with compatible devices, and the DAB+ receiver offers the pristine sound of digital radio. The FM tuner offers RDS readout and a 10-station direct access keyboard allows to store the favourite FM and DAB+ stations. Unlike non-professional hi-fi players, the NSA52 sports balanced outputs as well as unbalanced outputs, and a rear-side volume control to adapt to the following signal chain. The built-in jingle player with up to 4 jingles can play on demand or by schedule, and the 4 jingles can also be invoked by the external closure of the provided rear-panel contacts.
19" media player with DAB+ & FM tuner, jingles, MP3 player, wireless audio and IR remote control
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 12 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Control: | IR remote control; LINKOUSTIC 5.0 Wireless Audio Link |
| Bluetooth device name: | LINKOUSTIC |
| Audio player: | USB + Bluetooth; FM tuner; DAB+ |
| Range: | Bluetooth: up to 10m in buildings |
| Carrier frequency: | 2.4 GHz |
| Housing color: | Black matte; anthracite matte |
| Display type: | Monochrome LCD display |
| Display reading: | Singer , song title , play time elapsed , play time remaining; frequency , folder name |
| Tuner frequency range: | DAB(+) 174.928-239.200 MHz |
| Control elements: | Power switch, audio player, level control, encoder, memory button |

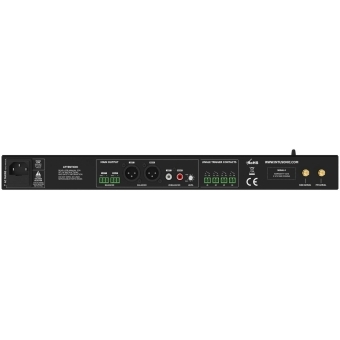

| Connections: | Antenna via 3 x SMA (F) mounting version Input: Trigger via 4 x screw plug-in terminal Output: line via 1 x stereo RCA Output: line via 2 x 3-pin XLR (M) mounting version Output: line via 2 x screw plug-in terminal |
| Music format: | MP3, WAV; FLAC, APE |
| Available storage media: | USB devices max. 64GB (FAT 16/32) |
| USB port: | 1 x type A |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Mounting depth: | 17 cm |
| Dimensions: | Width: 48.3 cm Depth: 18.8 cm Height: 4.4 cm |
| Weight: | 2.50 kg |
| Device | |
| Weight: | 2.23 kg |
| Power cord | |
| Weight: | 0.17 kg |

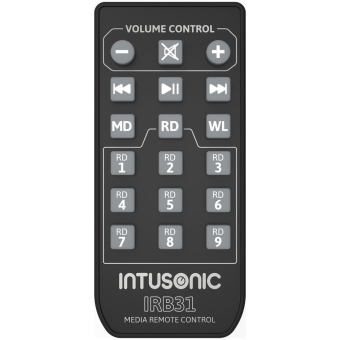

| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese (not included) |
| Weight: | 0.02 kg |
