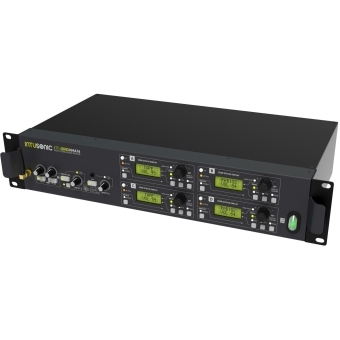

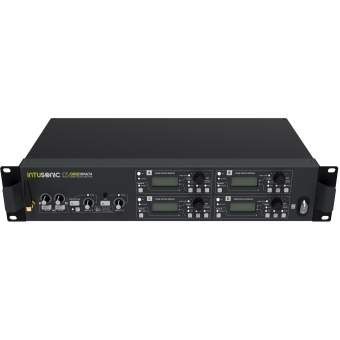

de la in 60 de rate fixe.The INTUGRID HMA74 is a core unit for Intusonic's digitally controlled audio zoning, which is complemented by the HZE11 zone remote wall panel. Together they deliver a scalable audio routing system for background music. The HMA74 offers two microphone inputs, 5 line inputs, a front-panel 3.5mm TRS input and a LINKOUSTIC 4.2 wireless audio link, which can be flexibly routed to its 4 output zones, with each of these zones controllable either by the on-board user interface, the included IR remote or a wall remote control panel. Every zone can be configured extensively to meet the application's demands, while keeping user interaction extremely simple. The HZE11 zone remote wall panel allows to remotely control all zone settings plus accepts a local audio feed.
19" audio router, 5 stereo & 2 mic inputs, IR remote an RS485 control option
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 14 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1 mm² power cable |
| Fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Battery: | 1 x button cell CR2025 (not included) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >104 dB |
| THD: | 70 dB |
| Display type: | 4 x LCD display |
| Control elements: | Power switch, encoder, level control per channel, phantom power switch, mute control; source selector, low cut switch, sensitivity rotary dial, regular talkover; stereo/mono switch, tone control |
| Status LED: | Power, signal, channel source, Mute, peak; ON AIR, pairing, link |
| Connections: | Input: stereo via 4 x stereo RCA Input: stereo via 2 x 6.3-mm-jack (bal.) Input: microphone via 2 x screw plug-in terminal Input: AUX via 1 x 3.5 mm jack (stereo) mounting version Output: zones via 4 x screw plug-in terminal Antenna via 1 x SMA (F) mounting version RS 485 via 6 x RJ-45 (F) mounting version Mute function via screw plug-in terminal Emergency via screw plug-in terminal |
| Channels: | Input channel: 1 x stereo via RCA or Bluetooth, channel control via rotary dial, gain control Input channel: 1 x stereo via RCA or jack plug, channel control via rotary dial, gain control Input channel: 2 x stereo via RCA, channel control via rotary dial, gain control Input channel: 1 x stereo via jack, channel control via rotary dial, gain control Microphone channel: 1 x mono via screw plug-in terminal, channel control via rotary dial, phantom power switch Microphone channel: 1 x mono via screw plug-in terminal, channel control via rotary dial, phantom power switch, talkover switch Zone output: 4 x stereo via screw plug-in terminal, channel control via rotary dial, 2-band tone control EQ, stereo/mono switch, low cut switch, regular talkover |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Mounting depth: | 24 cm |
| Dimensions: | Width: 48.3 cm Depth: 25 cm Height: 8.8 cm |
