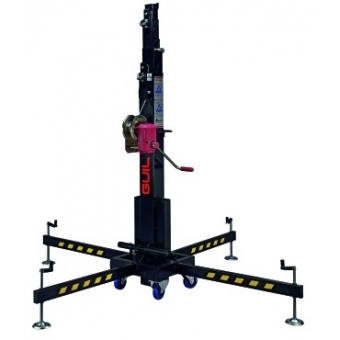

GUIL ELC-506 Truss lifter 250kg 5.2m

cod produs: 5900677B
La comanda
7268.79 Lei
*pretul include TVA

Descrierea Produsului

Rugged truss lifter for heavy weights

  • Four-part telescopic lifter
  • 1-gear winch for easy lifting of the loads
  • 6 mm steel rope 6 x 37+1 complying with DIN 3066
  • Automatic braking system
  • Max. falling depth in case of cable breakage 20 mm due to a special Zip/Trigger safety system
  • Additional steel profile with slots for highest stability instead of drilling holes into the section
  • Safety-pins for mechanic locking
  • Third safety device via fixation screw
  • Four massive outriggers for highest stability
  • Four auto-levelling, galvanized foot plates with rubber pads
  • Spirit level for exact vertical alignment
  • Easy transport via 100 mm castors, 2 fixed castors, 2 swivel castors
  • Base and all sections epoxy finished for highest corrosion protection
  • Made in Europe
Telescopic truss lifter
Sections:4 (120/100/80/60 mm)
Max. load:250 kg
Min. load:20 kg
Max. height:5.20 m
Min. height:1.70 m
Material:3 mm steel
Steel rope:6 mm
Adapter:57 x 57 mm
Base area:2.15 x 2.15 m
Transport dimensions:1.70 x 0.40 x 0.40 m
Weight:95 kg

Specificatiile Produsului

  • Tipuri sisteme de ridicat Tower lifts
