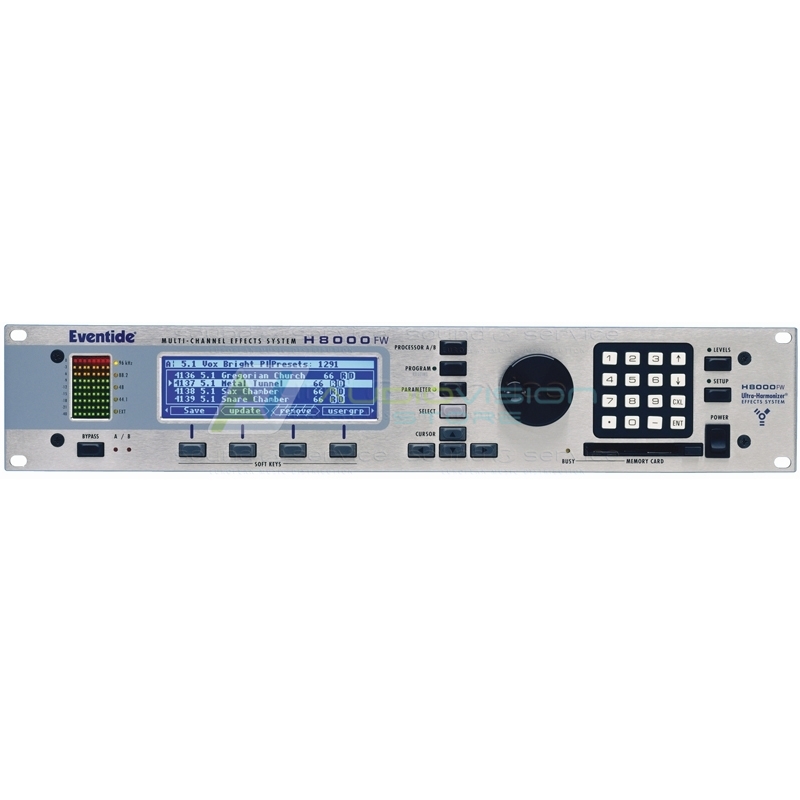

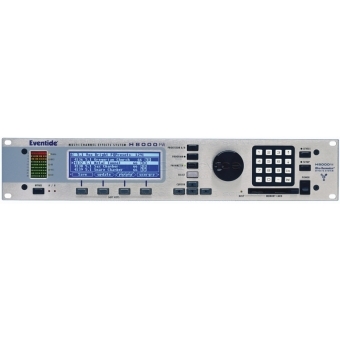

Featuring nearly sixteen hundred post-production and music effects preset-algorithms, never before has Eventide unleashed so much power for your creative endeavors. With the H8000FW you will run out of ideas before you run out of DSP power. With our catalog of over 230 effects modules, you can create effects never before thought of either from the front panel or using the supplied development tools for PC or OS X. Whether creating your own unique signature effect or dialing up one of our studio standard effects from the plethora of preset-algorithms, you will never run out of creative possibilities.
DIGITAL INTERFACES
Sample Rates: 96kHz, 88.2kHz, 48kHz, 44.1kHz via FireWire, AES/EBU, S/PDIF, ADAT, or word clock
DIGITAL Inputs/Outputs: AES DB-25: 8 channels of AES 24-bit at 44.1kHz - 96kHz
AES XLR: 4 channels of AES at 44.1kHz - 96kHz with sample rate conversion and relay bypass at power down
Lightpipe (Toslink): 8 channels of ADAT (4 channels at 96kHz with S/MUX) or 2 channels of S/PDIF at 44.1kHz/48kHz
FireWire: 8 channels of 24-bit at 44.1kHz - 96kHz
FireWire thru for daisy-chain connection to other FireWire devices
ANALOG INPUTS
Inputs: 4 XLR INPUTS
2 High Impedance ¼" INPUTS
Impedance: 20 K Ohm (bridging)
Full Scale Input Level: 26 dBu
Dynamic Range: >110 dB
Crosstalk: <-110dB @ 20Hz to 20kHz, -1dBFS
Frequency Response/Sample Rate: +0/-0.1dB @ sample rate
44.1kHz: 20Hz - 20kHz
48kHz: 20Hz - 22kHz
88.2kHz: 20Hz - 41kHz
96kHz: 20Hz - 44kHz
+0/-3.0dB @ sample rate
44.1kHz: 5Hz - 21kHz
48kHz: 5Hz - 23kHz
88.2kHz: 5Hz - 42kHz
96kHz: 5Hz - 45kHz
ANALOG OUTPUTS
Outputs: 4 XLR OUTPUTS
Impedance: <50 Ohm bridging
Dynamic Range: >110dB
Signal to Noise Ratio: >110dB, A-weighted
THD+N: <0.002% @ 1kHz, 3dBFS
Crosstalk: -110dB @ 20Hz to 20kHz, -1dBFS
Frequency Response Sample Rate using "Thru" Preset: +0/-0.1dB @ sample rate
44.1kHz: 10Hz - 20kHz
48kHz: 20Hz - 22kHz
88.2kHz: 10Hz - 26kHz
96kHz: 10Hz - 26kHz
+0/-3.0dB @ sample rate
44.1kHz: 5Hz - 21kHz
48kHz: 5Hz - 23kHz
88.2kHz: 5Hz - 43kHz
96kHz: 5Hz - 45kHz
OTHER CONNECTIONS
Remote Control: RJ-45 for EVE/NET™
Other Remote Control Inputs: Up to two foot pedals, or four 5V control inputs, or six foot switches, or combination
Other Remote Control Outputs: 2 isolated relay closures, rated at 30Vdc 1A
MIDI Connections: 5 pin DIN output and thru
7 pin DIN input with output capability
PMCIA Interface: 68 pin PCMCIA 2.0/JEIDA 4.0) Supports type 1 SRAM cards up to 4MB for data storage Compact Flash supported with CF to PCMCIA adaptor (supplied)
Factory Preset Capabilities (at 48kHz sampling):
Pitch Shifting: Up to 16 channels
Compressor/Limiter: Up to 16 channels
Equalization: Up to 256 bands parametric single input, 32 bands at 8 channels
Sampling with time compression: Up to 174 seconds mono @ 48kHz
Digital Delay: Up to 87 seconds mono in addition to sampler
