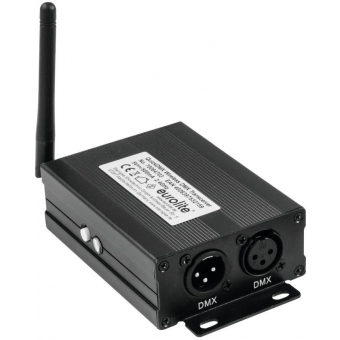

EUROLITE QuickDMX Wireless Transmitter/Receiver

Wireless DMX system 2.4 GHz

• Compact DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels
• DMX input and output, 3-pin XLR
• Auto-switching transceiver
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX units
• LED indication for functions
• Micro USB port; PSU included
• 2.4 GHz ISM band - license-free worldwide
• fehlt: Mains Input Socket (M) Micro USB (F) mounting version fehlt (provided)
• Control: QuickDMX; DMX
