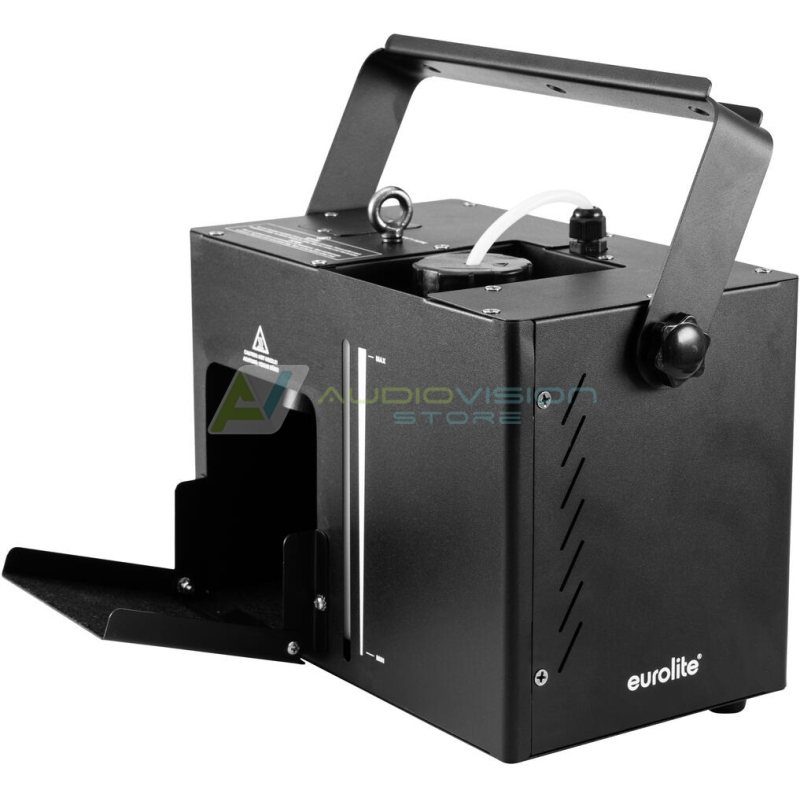

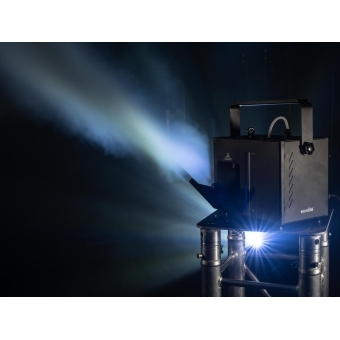

Compact DMX fazer with WirelessDMX port & adjustable output angle
Package contents
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Approx. 500 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, F 4 A fuse replaceable |
| Warm-up time: | Approx. 1,5 min |
| Output volume: | Approx. 170 m³/min |
| Output distance: | Approx. 2,0 m |
| Output duration: | - continuous |
| Tank capacity: | 1,3 l water-based fluid removable, backlit tank |
| Fluid consumption: | Faze mode approx. 5,7 ml/min |
| DMX channels: | 1 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; stand-alone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Housing color: | Black matte |
| Attachment system: | Mounting bracket |
| Operating principle: | Vaporizing fog machine with air compressor |
| Display type: | 1 x monochrome 4 digit 7-segment LED display |
| Controls: | Overheat |
| Material: | Metal, painted |
| Dimensions: | Length: 30 cm Width: 18,5 cm Height: 29,5 cm |
| Weight: | 3,53 kg |
| Power cord | |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø10mm |
| Material: | Metal, painted |
