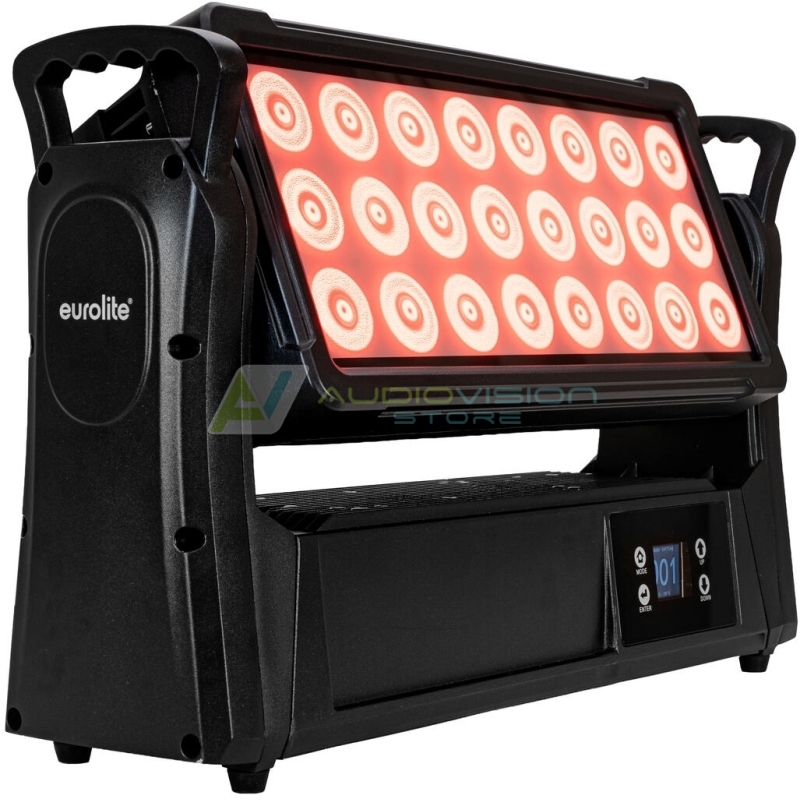

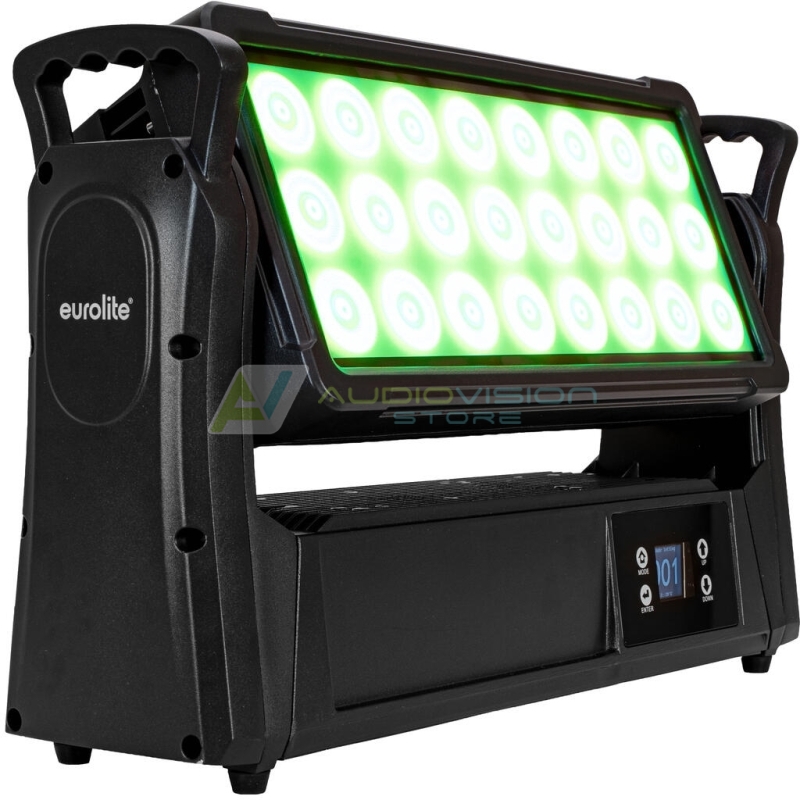

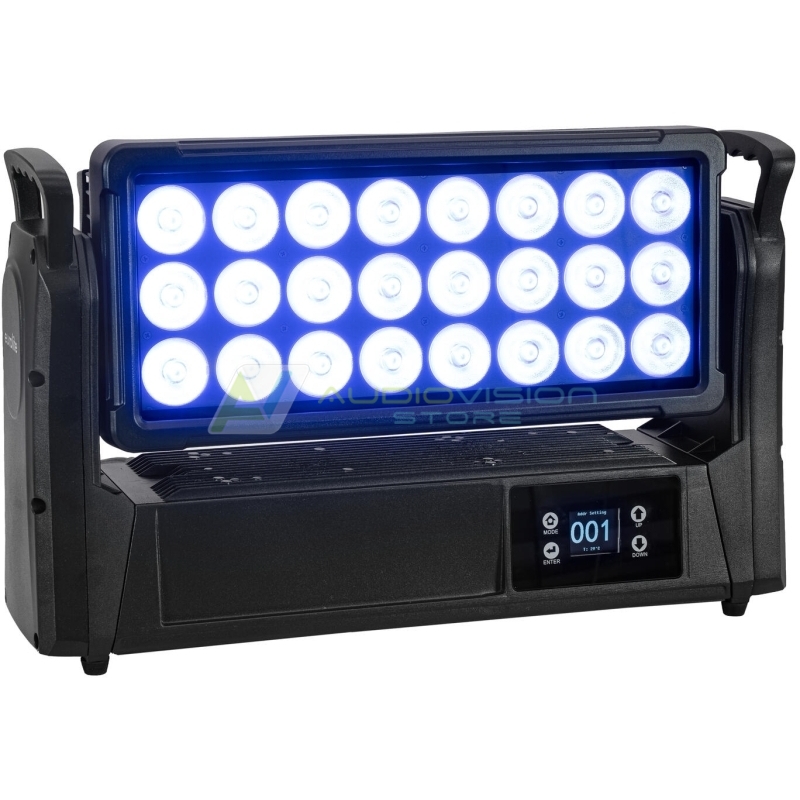

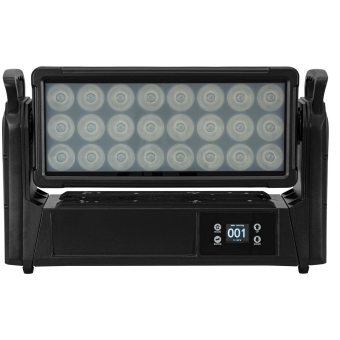

de la in 60 de rate fixe.Motorized tiltable outdoor spotlight (IP65) with stepless electronic frost for beam, wash, and pixel effects
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 350 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1.5 mm² H07RN-F |
| Power output: | 1 x IP T-Con (F) mounting version Bypass |
| Fuse: | T 5 A fuse serviceable |
| Lamp type: | LED lamp |
| LED type: | 24 x 40 W SMD 5060 4in1 RGBL (homogenous color mix) |
| Effective LED Power: | Max. 105 W with single colors Max. 250 W with color blend |
| Max. TILT movement: | 210° positioning |
| Flash rate: | 0.6 - 20 Hz |
| DMX channels: | 6; 7; 10; 13; 16; 28-1; 28-2; 100; 106 |
| DMX input: | 3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP |

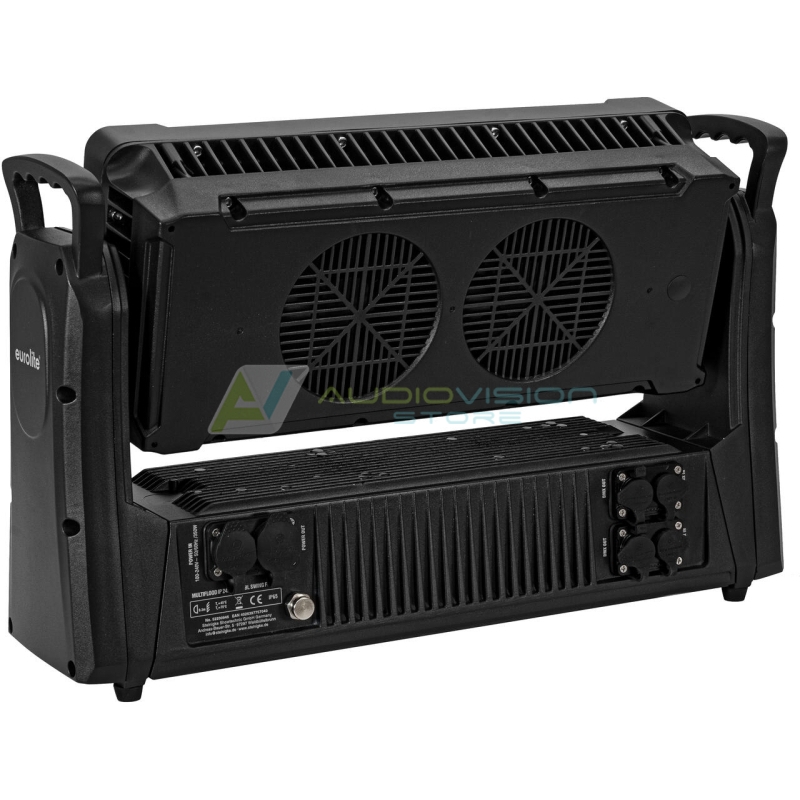

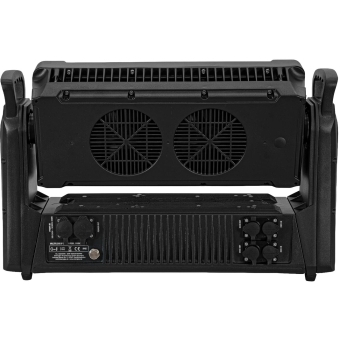

| Cooling: | 2 x temperature-controlled fan at the head 1 x cooling fan at the base |
| Control: | DMX; stand-alone; master/slave function; RDM |
| Fixtures available for: | Light Captain; Colorchief; GDTF (GrandMA3) |
| Projection: | Flicker-free |
| PWM frequency: | 10000 Hz |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Blackout; hold; auto |
| Beam angle: | 2° - 35° frost filter |
| Beam angle (1/2 peak): | Frost filter 2 - 30° |
| Beam angle (1/10 peak): | Frost filter 10 - 35° |
| Color temperature: | 2800K - 8100K adjustable |
| Color rendering index (CRI): | 81 Ra |
| Illuminance in Lux (lx): | Narrow red (R) 1m: 13473 lx, 3m: 5295 lx, 6m: 1578 lx Narrow green (G) 1m: 27854 lx, 3m: 8955 lx, 6m: 2664 lx Narrow blue (B) 1m: 3729 lx, 3m: 1774 lx, 6m: 538 lx Narrow lime 1m: 45989 lx, 3m: 14182 lx, 6m: 4137 lx Narrow all 1m: 57067 lx, 3m: 18121 lx, 6m: 5324 lx Wide red (R) 1m: 1688 lx, 3m: 216 lx, 6m: 60 lx Wide green (G) 1m: 2514 lx, 3m: 296 lx, 6m: 81 lx Wide blue (B) 1m: 461 lx, 3m: 56 lx, 6m: 16 lx Wide lime 1m: 4428 lx, 3m: 524 lx, 6m: 142 lx Wide all 1m: 5470 lx, 3m: 654 lx, 6m: 175 lx |
| Housing color: | Black matte |
| Attachment system: | 2x omega bracket |

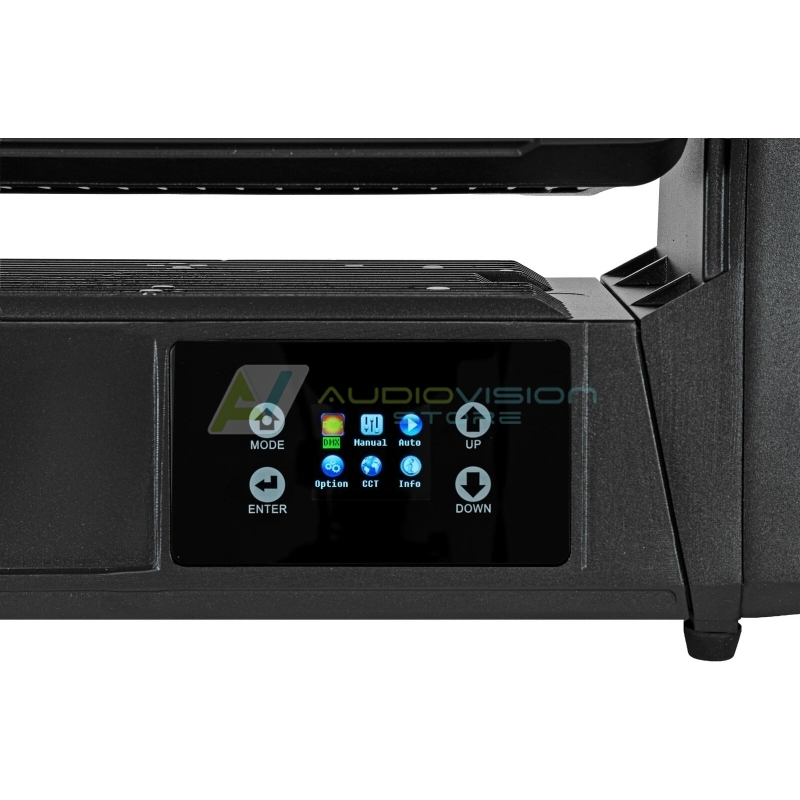

| Display type: | Multicolor TFT display |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 2 x Ø12mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Metal, 2.5 mm, painted; plastic |
| Dimensions: | Length: 52.8 cm Width: 19.5 cm Height: 32.65 cm |
| Weight: | 10.90 kg |
| Noise classification: | Class 0 (no noise at all) depending on mode used |
