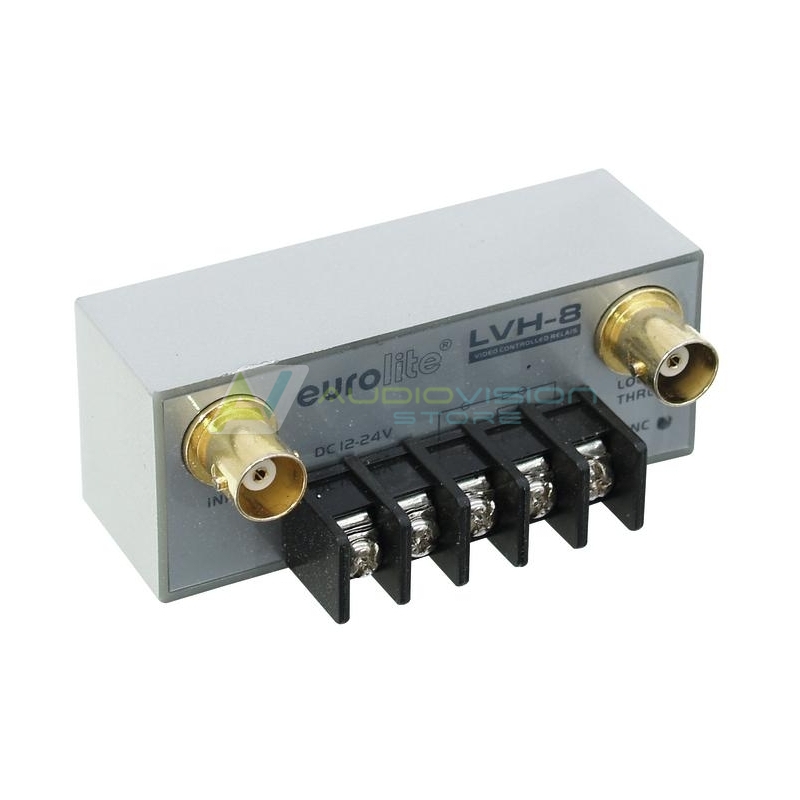

EUROLITE LVH-8 Video controlled relay

cod produs: 81013208
In stoc furnizor
581.80 Lei 523.62 Lei
*pretul include TVA

Descrierea Produsului

The LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.

Video controlled relay

  • Detection of video
  • NTSC and PAL compatible
  • Bridging or terminated operation
  • LED indicator
  • Connections via BNC plug
  • 12-24 V DC power supply via block terminals (PSU not included)
  • Ultra compact
Power supply:12-24 V DC, 74 mA
1 x video input:0.5-1 Vpp/75 ohms BNC, ground referenced
1 x video output:Feed-through/ BNC, ground referenced
Control output: N/O or N/C contacts
Relay contacts: Single-pole, double-throw
Max. switching power: 60 W, 125 VA
Max. switching voltage: 220 V AC, 250 V DC
Max. switching current: 2 A
Max. continuous switching current: 3 A
Dimensions (L x W x H):76 x 41 x 31 mm
Weight:7 g
