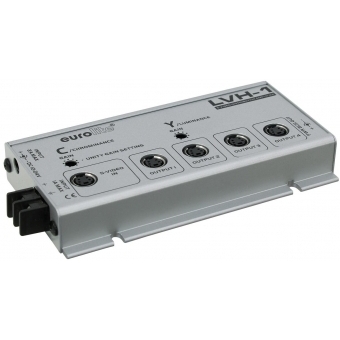

S-video distribution amplifier 1:4
| Power supply: | 12-49V DC 75 mA |
| Power connection: | Mains input via screw terminal Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (optional) |
| Frequency range: | 10 - 10000000 Hz |
| S/N ratio: | >75 dB |
| Gain: | 0 dB to +6 dB |
| Type of installation: | Wall mounting |
| Dimensions: | Width: 16.4 cm Depth: 8.3 cm Height: 2.3 cm |
| Weight: | 0.32 kg |
| 1 x S-video input: | 1 Vpp/ 75 ohms, 4-pin mini-DIN |
| 4 x S-video outputs: | 1 Vpp/ 75 ohms, 4-pin mini-DIN |
| Output isolation: | >45 dB |
| Differential gain: | 0.1% |
| Differential phase: | 0.1 degree |
