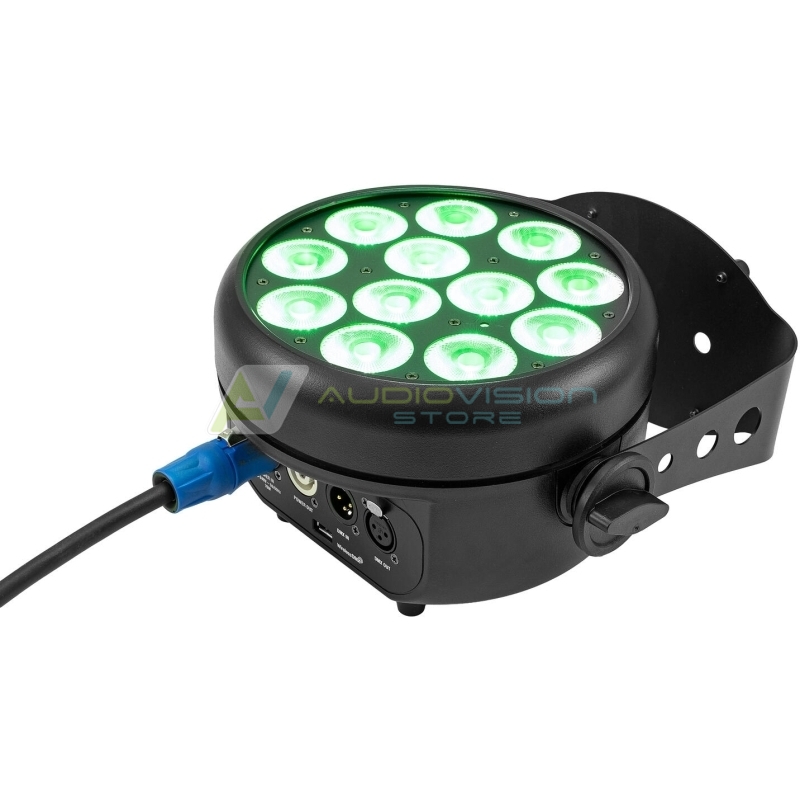

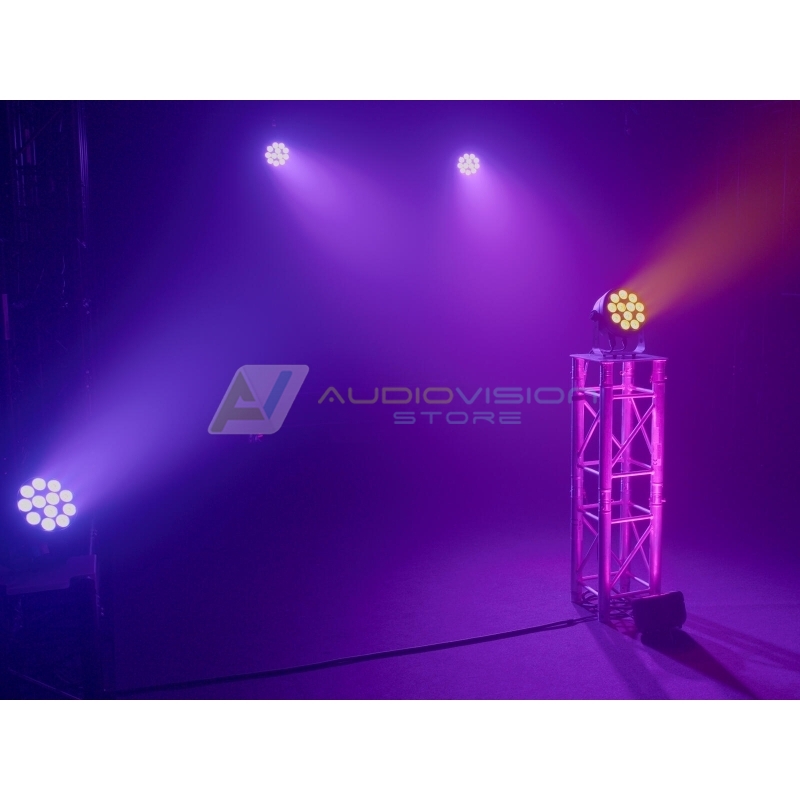

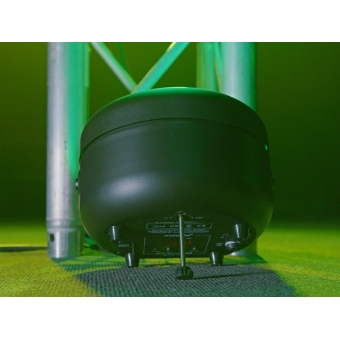

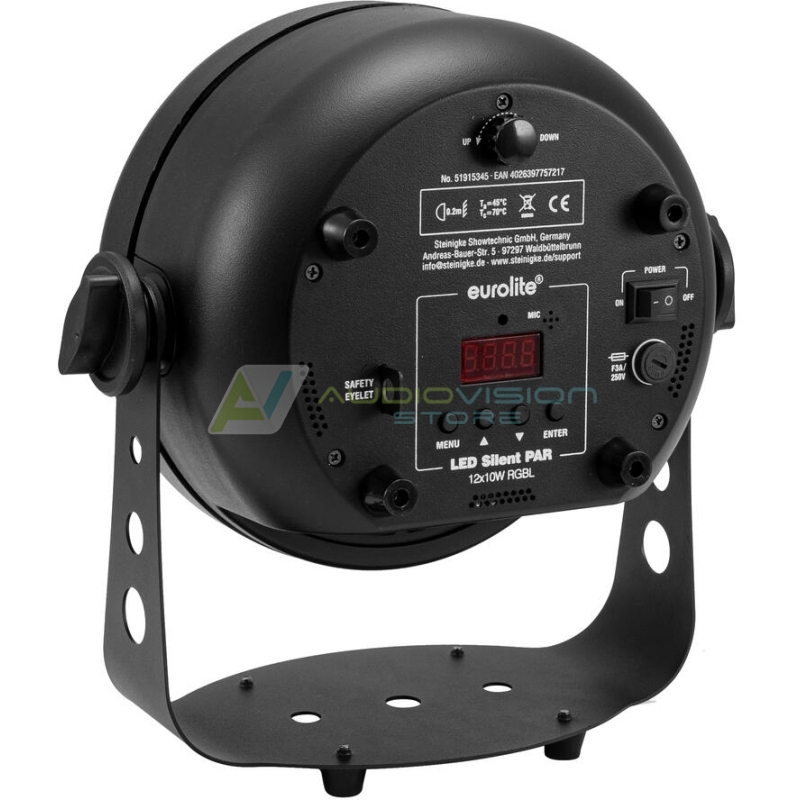

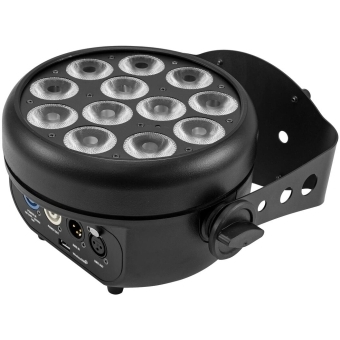

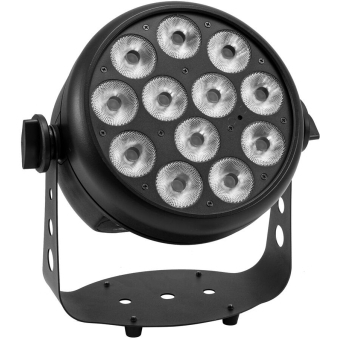

This fixture offers a range of special features. Its color mixing based on red, green, blue, and lime allows not only for vibrant, punchy colors but also for subtle pastel tones, as well as high-quality yellow and orange shades. It can even produce convincing white light.Thanks to its fanless design, the fixture operates completely silently. It is also highly versatile in terms of mounting: the bracket allows for both hanging and standing use, but can also be removed entirely if needed.Its design also allows the fixture to be placed directly on its back, making it suitable for use as an uplight. An extendable stand foot enables precise angle adjustment. The side-mounted connectors ensure clean and flexible installation.

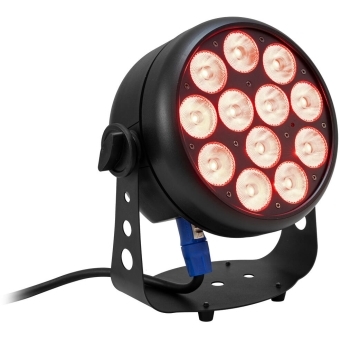

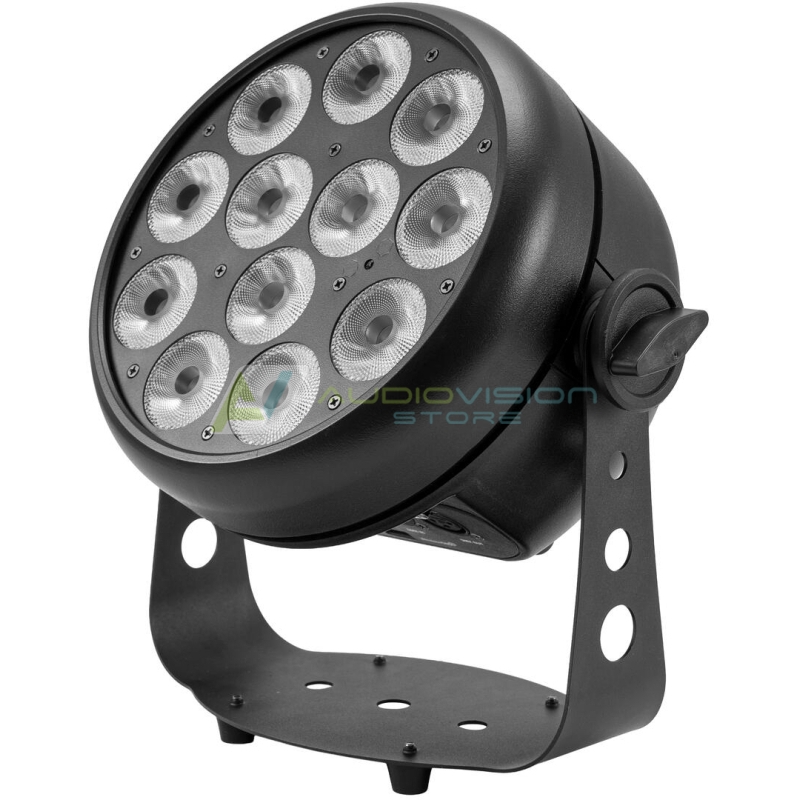

Fanless spot with RGBL color mixing and standing bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1 mm² H05VV-F |
| Power output: | 1 x P-Con (grey), mounting version Bypass |
| Fuse: | 5 x 20 mm, F 3 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 12 x 10 W SMD 5050 4in1 RGBL (homogenous color mix) |
| Flash rate: | 2 - 20 Hz |
| DMX channels: | 4; 6; 9 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; sound to light via microphone; master/slave function; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control |
| Fixtures available for: | Light´J; Light Captain; Daslight (SSL2) |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Blackout |
| Beam angle: | 15° spot |
| Beam angle (1/2 peak): | Spot 15° multicolor |
| Beam angle (1/10 peak): | 30° |
| Color temperature: | 1800K - 12000K adjustable |
| Color rendering index (CRI): | 81 Ra |
| Housing color: | Black matte |

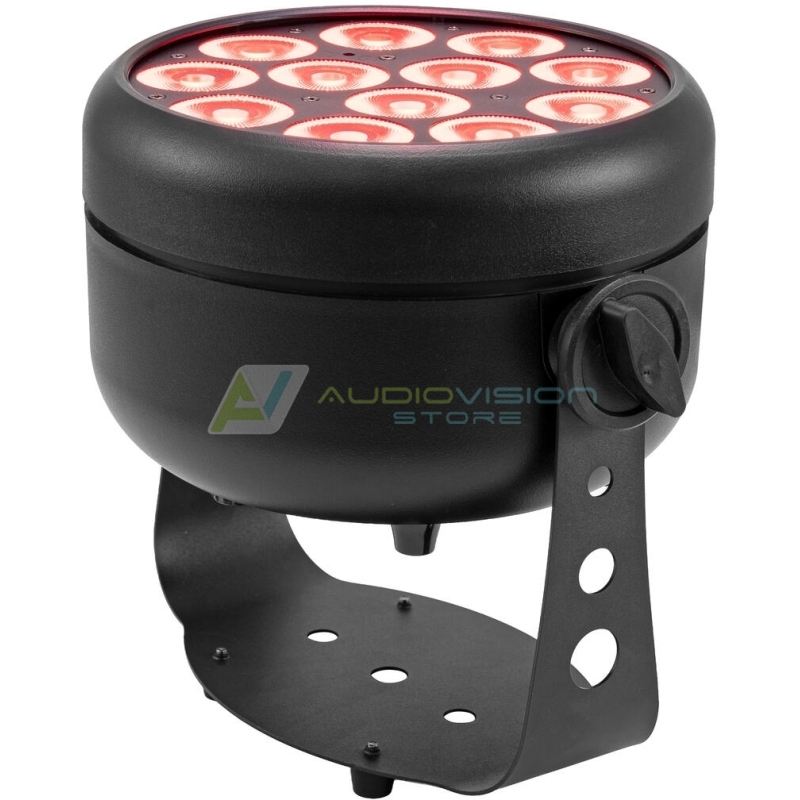

| Attachment system: | Bracket for floor use Mounting bracket |

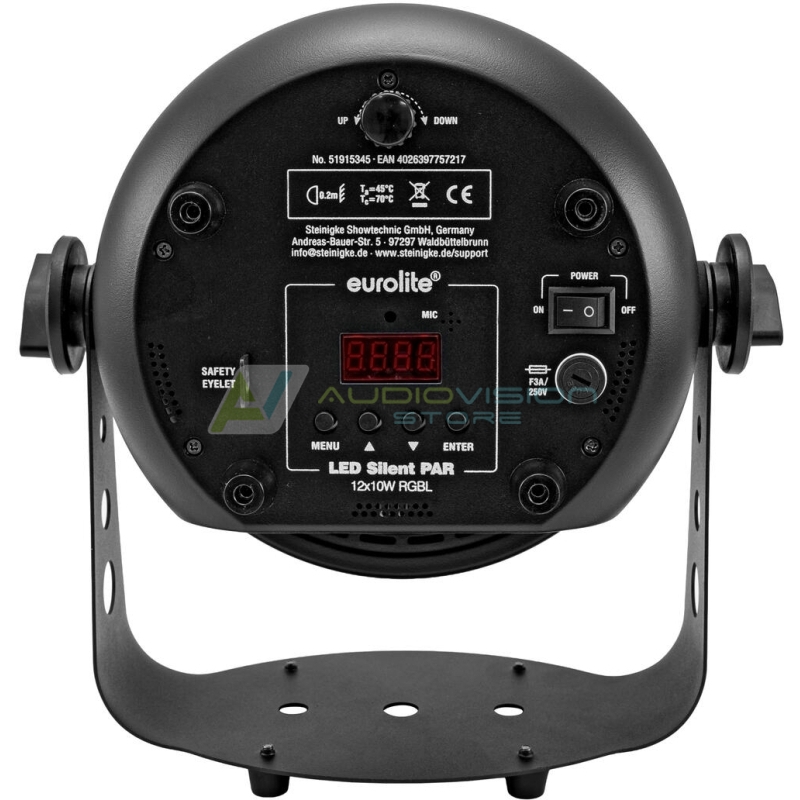

| Display type: | 4 digit 7-segment LED display |
| USB port: | 1 x type A |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 26.4 cm Depth: 14.12 cm Height: 27.15 cm |
| Weight: | 2.20 kg |
| Noise classification: | Class 0 (no noise at all) |
| Light effect | |
| Material: | Plastic |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ã8.2mm |
| Material: | Metal, painted |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese |
