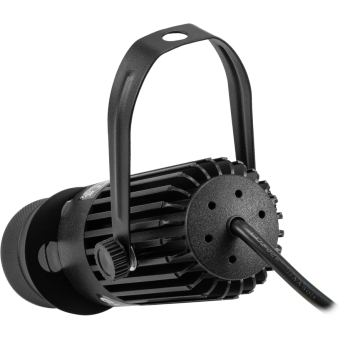

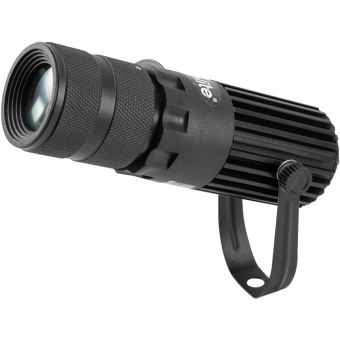

Narrow beam pinspot with 12 W cold white (CW) LED
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 12 W |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Lamp type: | LED lamp |
| LED type: | 1 x 12 W COB (chip-on-board) cold white (CW) |
| Equipment: | Focus manual |
| Gobos: | Gobo wheel with static gobos, 4 reduction gobos |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 12° spot |
| Beam angle (1/2 peak): | Spot 12° monochrome Spot 11° monochrome Spot 10° monochrome Spot 7° monochrome |
| Beam angle (1/10 peak): | Spot 16° Spot 14° Spot 12° Spot 9° |
| Color temperature: | 6000K |
| Color rendering index (CRI): | 90 Ra |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 5138 lx, 3m: 541 lx, 6m: 145 lx |
| Luminous flux: | 1200 lm rated light flux at 90° |
| Housing color: | Black matte |
| Material: | Aluminum casting; metal; plastic |
| Dimensions: | Length: 19 cm Width: 8.5 cm Height: 13.5 cm Diameter: Ø 6 cm |
| Weight: | 0.44 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | E |
| EPREL-Nr: | 2035437 |
| Power cord | |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm |
