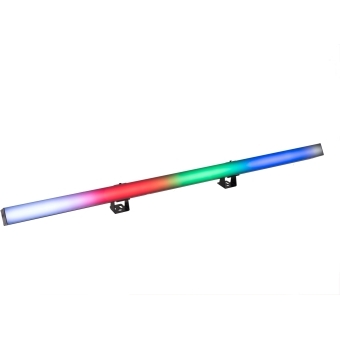

de la in 60 de rate fixe.DMX controlled pixel tube with RGB color mixing
mounting bracket

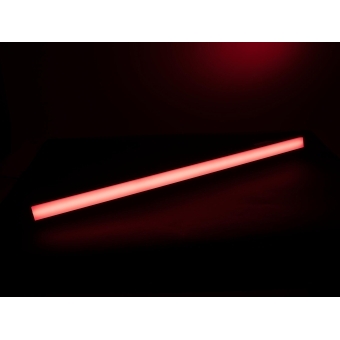

light effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1.0 mm² H07RN-F |
| Cable length: | 1.2 m |
| Power output: | 1 x P-Con (grey), mounting version |
| Fuse: | T 3.15 A fuse fix in power supply |
| Lamp type: | LED lamp |
| LED type: | 96 x SMD 5050 3in1 RGB (homogenous color mix) |
| Flash rate: | 0.25 - 10 Hz |
| DMX channels: | 3; 5; 8; 48; 96 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; sound to light via microphone; stand-alone |
| Fixtures available for: | GDTF (GrandMA3); Light Captain |
| DMX fail mode: | Blackout; hold; auto; static; full on |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color temperature: | - 6500K adjustable |
| Housing color: | Black matte |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Dimensions: | Length: 99.90 cm Width: 5.95 cm Height: 13.25 cm |
| Weight: | 2.10 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 1.0 mm² H05VV-F; 3 x 1.0 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Mounting bracket | |
| Setup: | Easy installation |
| Diameter mounting holes: | 1 x Ø11mm; 2 x Ø7mm; 2 x Ø7mm |
| Material: | Metal, 2 mm; metal, 2 mm |
