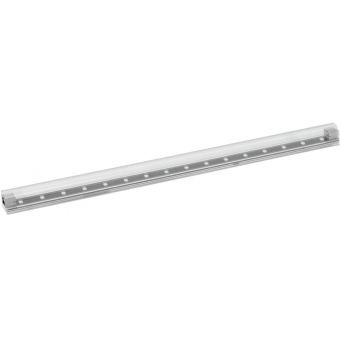

LED bar for pixel mapping applications
| Power supply: | 24V DC |
| Power consumption: | 2 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via RJ-45 (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 16 x SMD 5050 3in1 RGB (homogenous color mix) |
| Control: | Accessory; master/slave function |
| Beam angle: | 180° |
| Beam angle (1/2 peak): | 180° |
| Image: | 16 px Pixel pitch 30 mm |
| Housing color: | Silver |
| Connections: | Signal via 2 x RJ-45 (F) mounting version |
| Dimensions: | Length: 50 cm Depth: 3.2 cm Height: 3.2 cm |
| Weight: | 0.11 kg |
