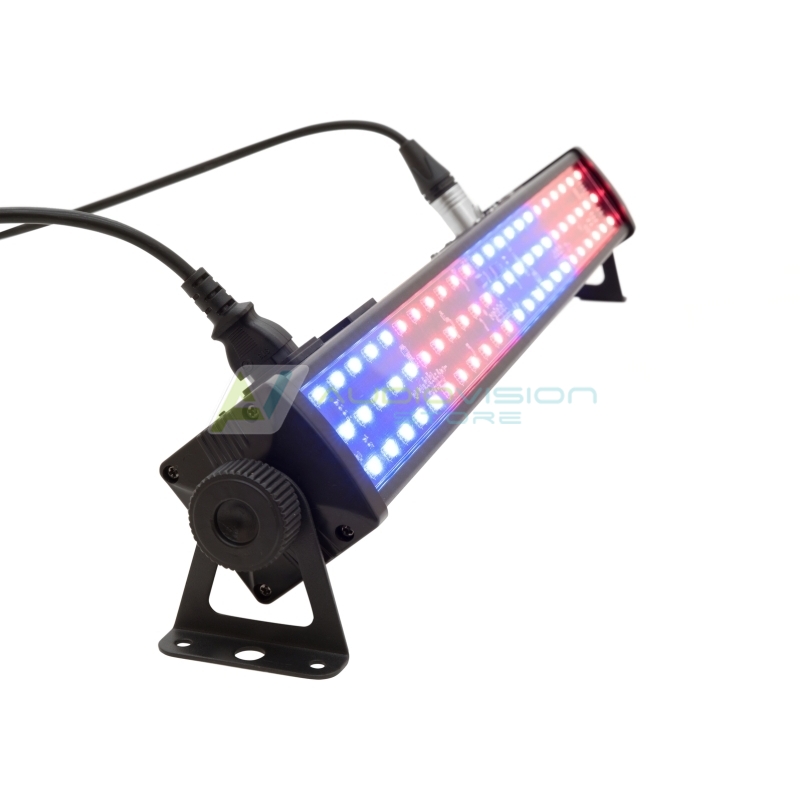

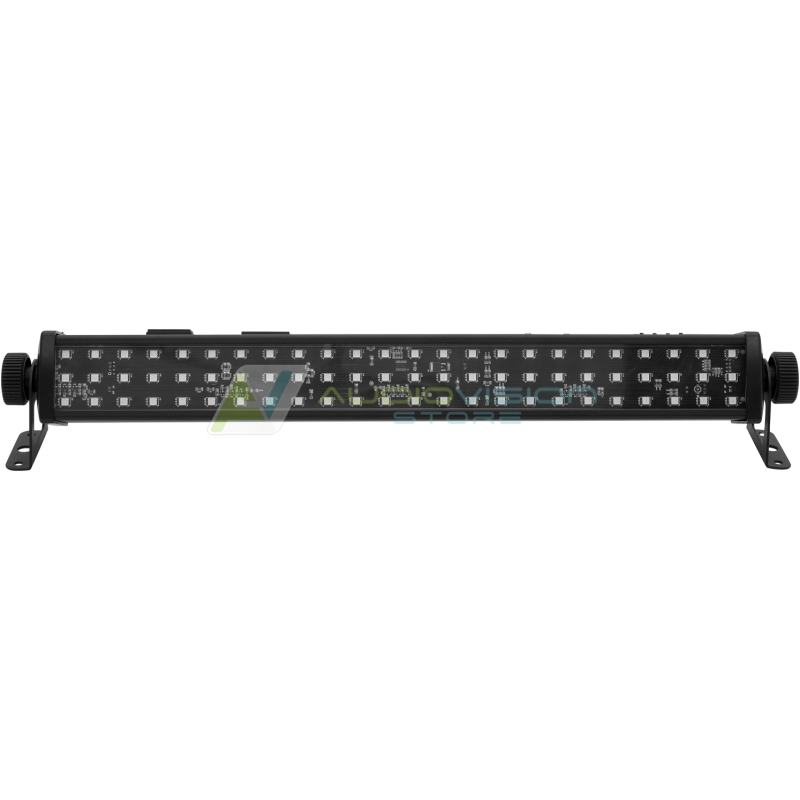

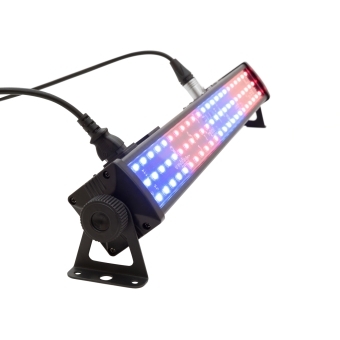

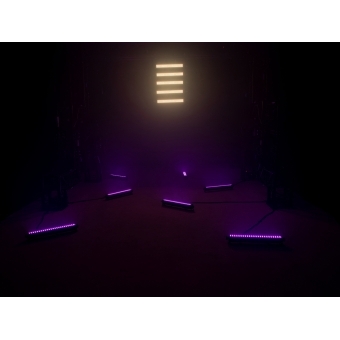

de la in 48 de rate fixe.Bar (50 cm) with 72 wide beam RGB LEDs, 4 segments
knurled screw
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Power output: | IEC connector (F) mounting version |
| Fuse: | T 0.5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 72 x SMD 5050 3in1 RGB (homogenous color mix) |
| Flash rate: | 0.8 - 25 Hz |
| DMX channels: | 3; 5; 6; 12 |

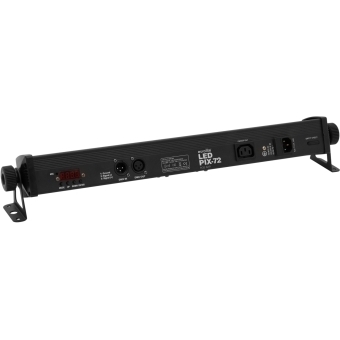

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; master/slave function; sound to light via microphone |
| Fixtures available for: | Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 13000 Hz |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Aluminum casting |
| Dimensions: | Length: 56.5 cm Depth: 7.0 cm Height: 9.0 cm |
| Weight: | 1.03 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm; 2 x Ø8mm; 1 x Ø8.5mm |
| Material: | Metal, 2 mm |
| Knurled screw | |
| Thread: | M8 thread x 16 mm |
| Washer | |
| Material: | Rubber |
| Dimensions: | Height: 0.3 cm Diameter: Ø 2 cm |
