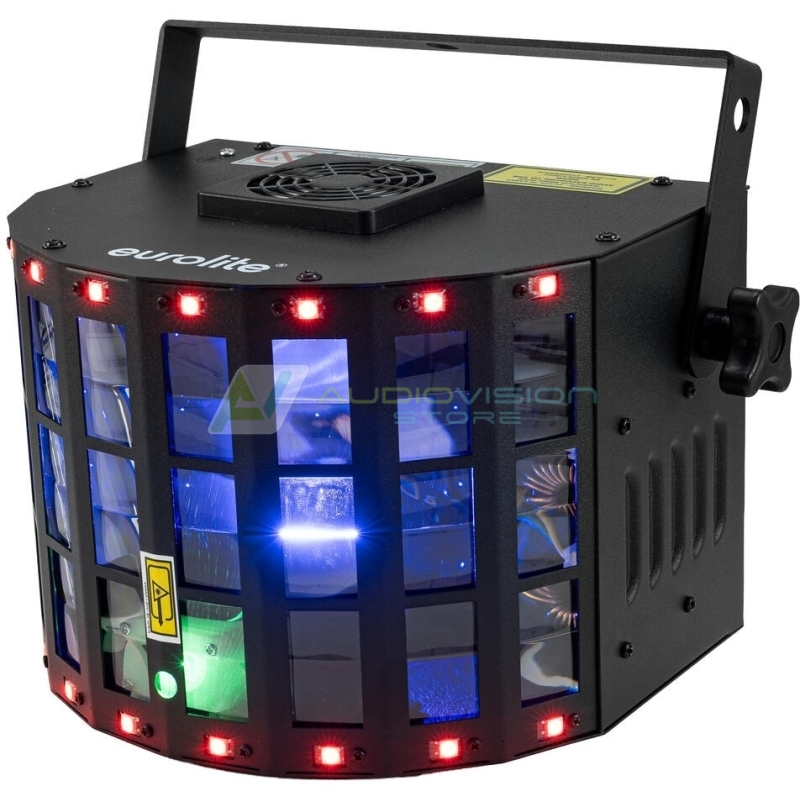

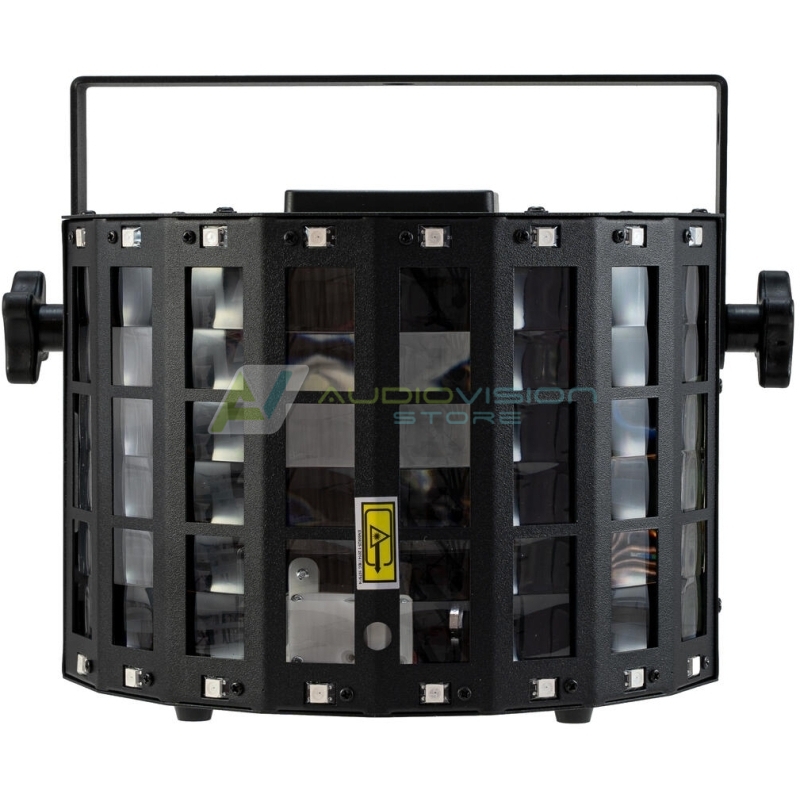

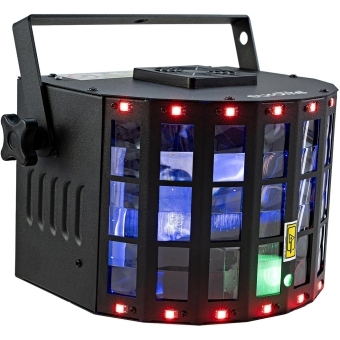

The MK3 version of the Laser Derby continues to deliver an impressively bright derby effect for its size, featuring red, green, blue, and white beams, along with an integrated red and green star laser. The laser remains class 2M, meaning no laser safety certification or emergency stop is required in Germany (regulations may vary in other countries).There are also two key upgrades: the previous white strobe LEDs have been replaced with multi-color twinkle LEDs. These can still produce white strobe effects but are now also capable of creating colorful chases and sparkling effects.In addition, the Laser Derby is now part of the AIR series. This means that, alongside standard DMX and stand-alone functions, it also benefits from the AIR system features, including a cross-series wireless remote control, an integrated wireless module for master-slave operation, and additional advanced control options.
DMX light effect with RG laser (2M), rotating LED derby, twinkle effect, AirW wireless system (2.4 GHz) and RF remote control
laser
light effect
strobes
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Fuse: | 5 x 20 mm, T 1.6 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 2; 4; 5; 7; 8; 9; 10; 14 |

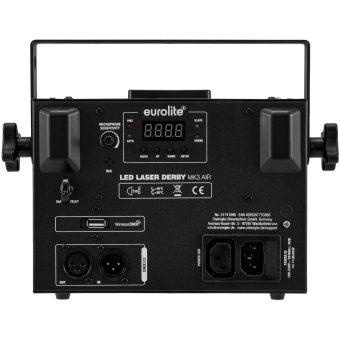

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: | Cooling fan |
| Control: | Stand-alone; sound to light via microphone; rotary dial for microphone sensitivity; master/slave function; wireless remote control; DMX; AirW; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 4000 Hz |
| Range: | AirW: up to 70m with line-of-sight Wireless remote control: up to 30m with line-of-sight |
| Carrier frequency: | 2.4 GHz |
| Modulation: | GFSK |
| DMX fail mode: | Blackout; full on; hold; auto |
| Housing color: | Black matte |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Status LED: | Auto mode, sound mode, DMX, slave mode |
| USB port: | 1 x type A |
| Material: | Metal, painted |
| Dimensions: | Width: 26 cm Depth: 19 cm Height: 19 cm |
| Weight: | 2.22 kg |
| Noise classification: | Class 2 (slight noise) |
| Remote control | |
| Battery: | 1 x 12 V 23AE alkaline manganese included |
| Carrier frequency: | 433.92 MHz |
| Mounting bracket | |
| Attachment system: | 1x à 10mm |
| Diameter mounting holes: | 1 x Ã10.2mm |
| Material thickness: | 2.3 mm |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Green (G) 35 mW 520nm Red (R) 80 mW 650nm |
| Light effect | |
| LED type: | 4 x 10 W SMD 5050 R/G/B/W |
| Flash rate: | 0.7 - 20 Hz |
| Strobes | |
| LED type: | 16 x 0.5 W SMD 5050 3in1 RGB |
