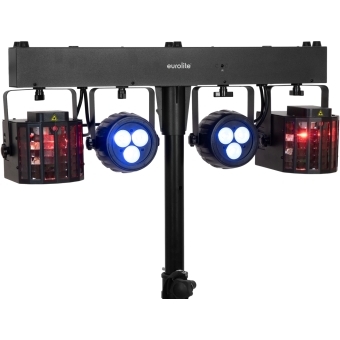

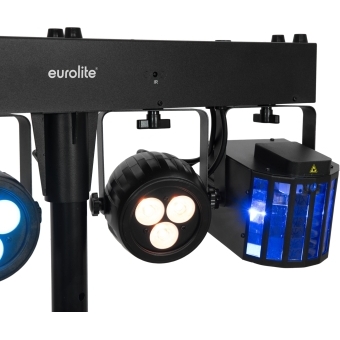

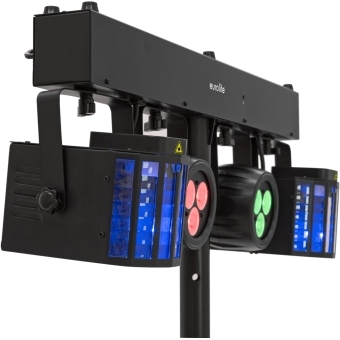

DMX light effect bar with 2 rotating LED derbies, 2 LED spots and 2 lasers (RG/2M)
spotlight
light effect
laser
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 3; 13; 25 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: | Flicker-free |
| Housing color: | Black |
| Attachment system: | Tube: 1x Ø 35mm |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 62.5 cm Depth: 15.5 cm Height: 22.9 cm |
| Weight: | 4.60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Spotlight | |
| LED type: | 3 x 8 W COB (chip-on-board) 4in1 RGBW (homogenous color mix) |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | 18° |
| Beam angle (1/10 peak): | 34 |
| Light effect | |
| LED type: | 4 x 3 W SMD 8072 R/G/B/W |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Green (G) 14 mW Red (R) 40 mW |
