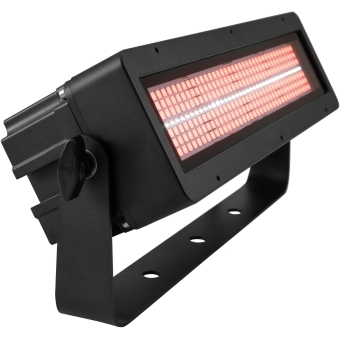

de la in 60 de rate fixe.The weatherproof IP PIX Strobe has quickly become a popular fixture on outdoor stages. It can now be found everywhere, from small concert venues and large festivals to architectural lighting.Its success is based on a powerful combination of high light output, a weatherproof housing, and an attractive price-performance ratio. At its center is an exceptionally bright LED strip whose color temperature can be continuously adjusted from warm white to cool white. This strip is divided into four segments and can be controlled individually.The system is complemented by RGB LEDs above and below the central strip, which are divided into eight segments. Thanks to its extremely wide beam angle and good visibility even from the side, the device is suitable for use as a strobe and blinder as well as for creating atmospheric lighting effects.Thanks to its fanless design, the device operates completely silently and is therefore also suitable for noise-sensitive environments. The hermetically sealed IP65 housing provides additional protection against dust, making the device ideal for use in indoor installations.
Outdoor spotlight (IP65) for stroboscope, ambient and animation effects
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 135 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | T 5 A fuse fix in power supply |
| Lamp type: | LED lamp |
| LED type: | 240 x 0.5 W SMD 5050 3in1 RGB 40 x 1 W SMD 3030 2in1 CW/WW |
| Flash rate: | 1 - 25 Hz |
| DMX channels: | 6; 10; 18; 24; 25; 32; 33; 34 |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light via microphone; master/slave function; DMX |
| Projection: | Flicker-free |
| PWM frequency: | 4000 Hz |
| DMX fail mode: | Blackout; hold; manual; auto |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color temperature: | 3200K - 6600K adjustable |
| Color rendering index (CRI): | 80 Ra |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Dimensions: | Length: 38 cm Depth: 11 cm Height: 14.5 cm |
| Weight: | 3.30 kg |
| Noise classification: | Class 0 (no noise at all) |
| Device | |
| Material: | Aluminum casting |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø13mm |
| Material: | Metal |
| Material thickness: | 3 mm |
| Power cord | |
| Cable construction: | 3 x 1.5 mm² H07RN-F |
