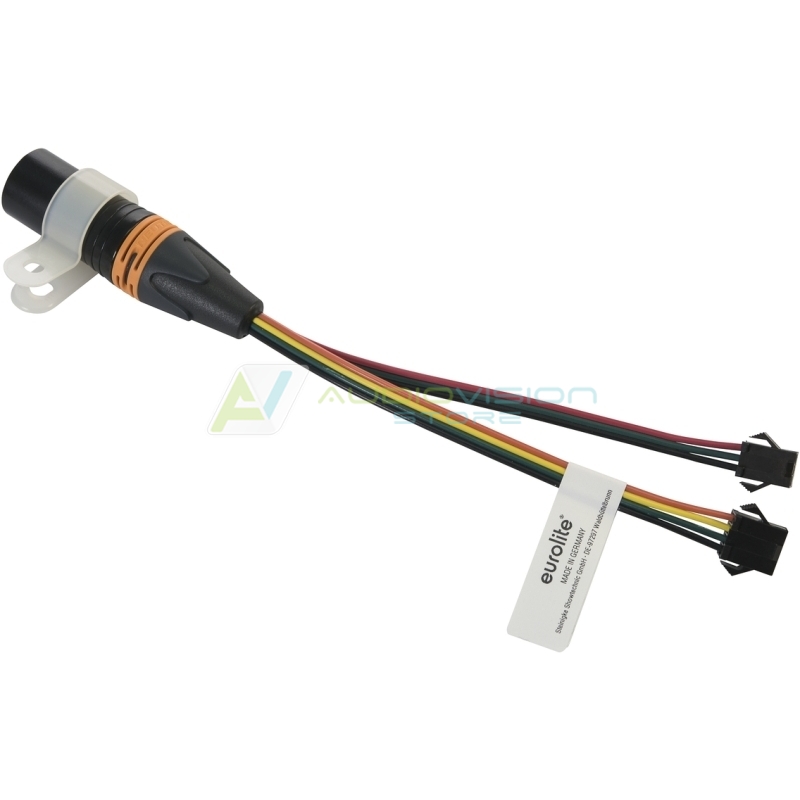

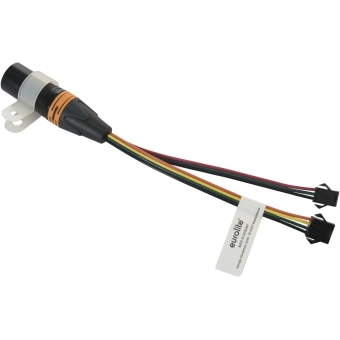

EUROLITE DXT DMX Pixel Converter PRO

Compact DMX converter for LED pixel strips

• Can control up to 18000 digital LED pixels via a DMX512 signal
• Extremely compact design placed in the XLR plug
• 1 x 4-pin JST connector (F) with Data and Clock output
• 1 x 3-pin JST connector (F) with Data output
• Multiple LEDs can be grouped together to form virtual pixels, e.g. a strip with 300 LEDs can be controlled with 3 DMX channels
• 1 to 6 colors per pixel
• Refresh rate: DMX, 40 Hz, 20 Hz, 10 Hz, 5 Hz
• Does not require a separate adapter - power supply is via LED strip (5-12 V)
• Mounting via supplied plastic clip
• Configuration via software tool (Windows) and the Eurolite USB-DMX adapter (item 51860118)
• The "Pixel Converter Config Tool" is available for download from the product page at www.eurolite.de
• Made in Germany
