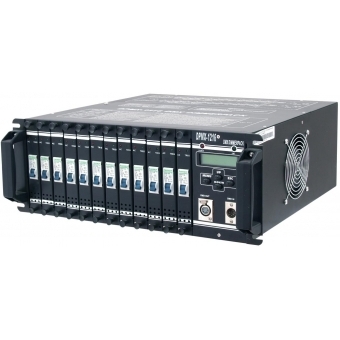

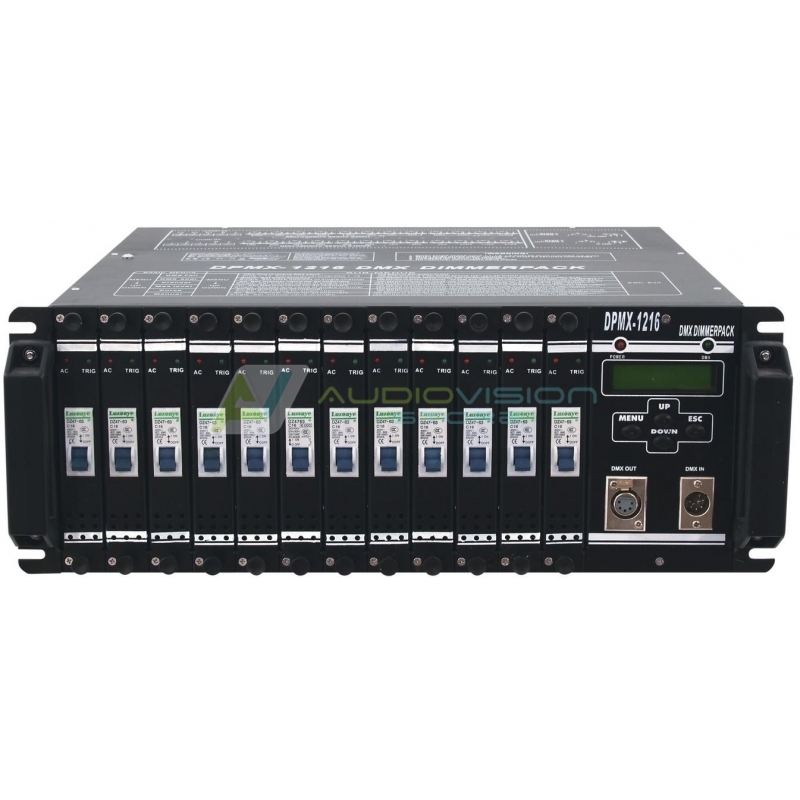

EUROLITE DPMX-1216 DMX Dimmer Pack

12 x 16A dimmer, service friendly modules, connection via terminal block

• 12-channel dimmer pack with up to 16 A output per channel
• Modular design of the individual dimmer modules for quick and easy change
• 3-phase or 1-phase power supply
• Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
• Curve function for selection of different fade modes
• Dim or switch option assignable to each channel
• DMX Fail function: automatic digital input check to detect DMX signal errors
• Manual mode for dimming capability without an external lighting controller
• Synchronization of several devices possible via DMX
• Automatic circuit breaker per channel (type C)

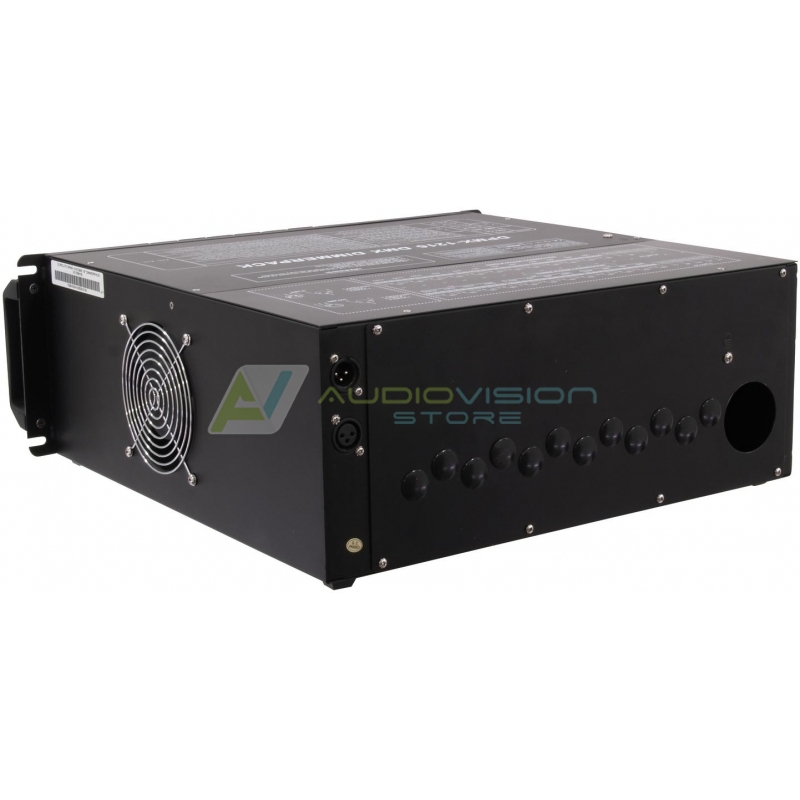

• Channel-outputs on the rearpanel via pole connectors
• Only for professional use
• 12 integrated show programs
• Preprogrammed 12 scenes/chases
• Can be operated in 12 CH mode
• The device is cooled by cooling fan
• Control via stand-alone; DMX
• LCD display
• (19") 48.3 cm rack installation 4 U
• For application areas such as: Trade fair and shop fitting; stage; theater; rental
• Very quiet working noise
