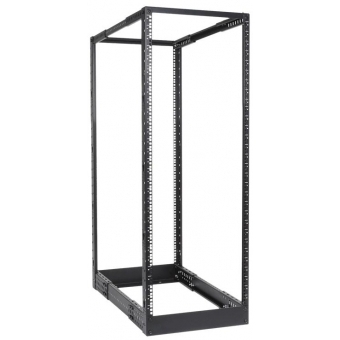

DPR932/B - 4-post 19" open-frame rack - 32 units - 550~1015 mm depth - Black version

DPR932/B - 4-post 19" open-frame rack - 32 units - 550~1015 mm depth - Black version
1936.96 Lei
*pretul include TVA
La comanda
Caymon
cod produs: DPR932/B
Descrierea Produsului

The DPR932 is a professional and solid constructed 4-post open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a sturdy and low-cost solution, suitable for installing up to 32 units of 19” equipment. The open frame construction is made of 2.0 mm thick steel and finished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators. Adjustable vertical supports allow in depth adjustment within a range of 56 to 102 cm while the base angle profiles can be mounted outwards for increased stability or inwards for conserve floor space. Delivery in a flat-down package allows easy transportation of the rack to any installation location, while the simple structure allows assembly by a single person in a record-breaking time.

Highlights

  • Stores up to 32 units of 19” Equipment
  • in depth adjustable 19” profiles (max 1015 mm)
  • Can carry a max load of 450 kg
  • Unrestricted air flow due to open-frame design
  • Punched square holes for use with snap-in cage nuts
  • Easy assembly in 10 minutes
  • Ships as flat-down package
Product features
Unit height32 HE
Max. usable depth550 ~ 1015 mm
Max. load450 kg
Dimensions514 x 1562 x 560 ~ 1020 mm (W x H x D)
Weight20.530 kg
ColoursBlack (RAL9004)
