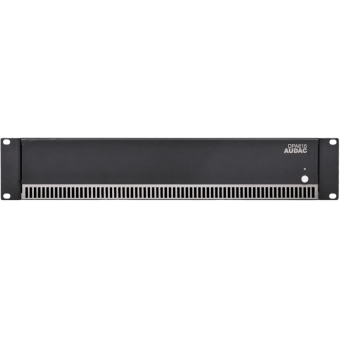

DPA616 - Sixteen Channel Class-d Poweramplifier - 16x60w/8x120w

cod produs: DPA616
La comanda
6827.27 Lei
*pretul include TVA

Descrierea Produsului

The DPA616 is a professional sixteen channel power amplifier which is capable of delivering a power of 60 Watt to 4 Ohm loads connected to the 16 output channels. When used in bridge mode, it can deliver a power of 120 Watt to 8 Ohm loads connected to the 8 bridged outputs. This way, the DPA616 is the perfect solution for installed multi-zone audio distribution systems with 8 or 16 zones.

This amplifier is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation.

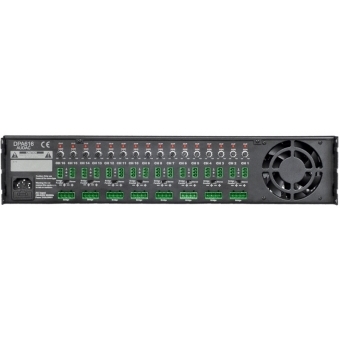

The input connections are all performed with 3-pin Terminal block connectors, allowing the connection of balanced input signals. Every channel is fitted with a separate gain control potentiometer and for every two input connectors, there is a stereo / bridge & parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal.

The output connections are performed with 4-pin Terminal block connectors allowing connections for separate or bridged output channels. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload and limits the signal when necessary. This all is housed in a double rack space, steel 19” rack mount housing.


  • 16 Channel power amplifier
  • Class-D Technology
  • 16 x 60 Watt in Stereo mode
  • 8 x 120 Watt in Bridge mode
  • Stereo /Bridge & parallel switch
  • Terminal block connectors
  • Advanced protection circuit
  • 19" Mounting device
Stereo @ 4 Ω 16 x 60 W
Stereo @ 8 Ω 16 x 30 W
Bridge @ 8 Ω 8 x 120 W
THD+N 100 dB
Power Supply 110 - 240V AC /50 - 60 Hz
Dimensions (W x H x D) 482 x 88 x 322 mm
Weight 8.2 kg

Specificatiile Produsului

  • Categorie Amplificator clasa D
  • Cu USB Player NU
  • Echipamente Sunet Amplificatoare
  • Impedanta Minima 4 ohm
  • Numar Unitati 2U
  • Tip Amplificator Instalatie fixa, Touring (rental)
