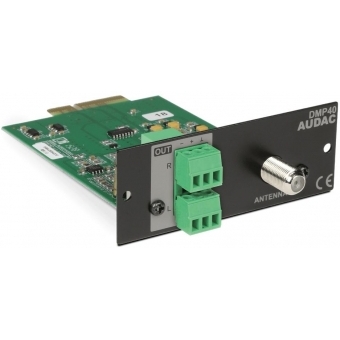

DMP40 - SourceCon™ DAB/DAB+ & FM tuner module

DMP40 - SourceCon™ DAB/DAB+ & FM tuner module
Pret la cerere
In Stoc
cod produs: DMP40
Descrierea Produsului

The DMP40 is a professional DAB/DAB+ & FM tuner featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration. The DMP40 provides access to a wide variation of radio stations while guaranteeing a high-quality audio reproduction. Station selection can be done manually or automatically, while up to 10 preferred channels can be internally stored and recalled. Radio station information carried by RDS / Radiotext can be retrieved, while other functions such as mono/stereo switching (FM) always guarantee the best possible audio clarity. The signal output level is user configurable, while dynamic range compression (DRC) is supported, improving the intelligibility for low volumes in applications with high levels of background noise. Signal reception strength can be retrieved from the module and indicated on the graphical interface of the controlling device. The antenna input is implemented by an F-type connector on its panel, allowing connection of the included antenna cable or any other external antenna using 75 O coaxial cabling. The balanced stereo line output is connected through two 3-pin terminal block connections.

Discover more about our modular audio players


  • Works with any SourceCon™ enabled device
  • DAB/DAB+/FM support
  • RDS / radiotext station information
  • Manual & auto tuning
  • True plug & play solution
  • F-type antenna connection
  • Preferential station storage
  • Signal strength indication
  • Balanced stereo line output


  • Clubs, bars, restaurants
  • Retail
  • Public facilities
  • Corporate spaces
  • Houses of worship
System specifications
Connection SourceCon™ interface card slot
Inputs F-type antenna connection (75 Ω)
FM Tuning Range (-10 dB) 87.5 ~ 108 MHz
FM Sensitivity (1W/1m) -108 dBm
FM Signal / Noise 52 dB
FM THD+N (@ 1 kHz) 0.22%
FM Frequency Response (± 3 dB) 30 Hz - 12.5 kHz
FM Crosstalk (@ 1 kHz) 26 dB
DAB Tuning Range (-10 dB) Band-3 171 ~ 240 MHz
DAB Tuning Range (-10 dB) L-Band 1452 ~ 1492 MHz
DAB Sensitivity (1W/1m) -99 dBm
DAB Signal / Noise 81 dB
DAB THD+N (@ 1 kHz) 0.026%
DAB Frequency Response (± 3 dB) 42 Hz - 20 kHz
DAB Crosstalk (@ 1 kHz) 53 dB
Outputs Type Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm))
Outputs Level +8 dB ~ -32 dB
Power Consumption 1.5 W
Product features
Dimensions 87 x 34.5 x 114 mm (W x H x D)
Weight 0.074 kg
Mounting SourceCon™ interface card slot
