Defender Ultra L LUX - Cable Protector 2-channel LUX

Defender Ultra L LUX - Cable Protector 2-channel LUX
2158.97 Lei
1511.28 Lei
*pretul include TVA
La comanda
cod produs: 85600LUX
Descrierea Produsului

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers in the Defender LUX Series have highly transparent, yellow-tinted lids in which LED light tubes can be inserted parallel to cables and other pipes. Based on state-of-the-art technology, Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues and ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. LED light tubes from the Defender Series are available as separate accessories. For more information, please refer to our price list for Defender LUX cable crossovers and light tubes, or contact your Defender representative directly.

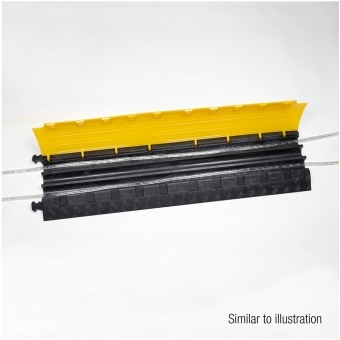

Cable protector, 2-channel

Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.

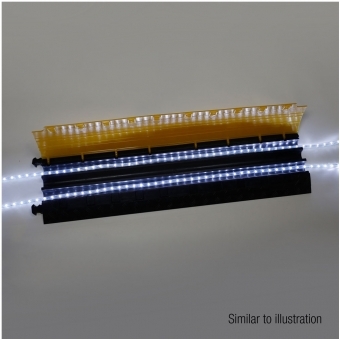

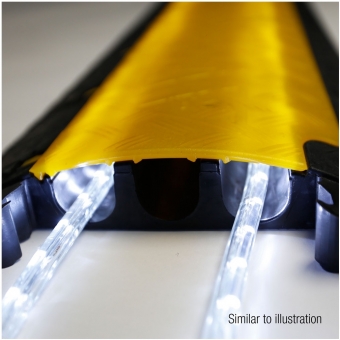

Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are particularly recommended since the individual LEDs are less visible and this provides particularly homogeneous lighting. For outdoor use, please take care to ensure the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

  • Heavy duty cable protector made of black, recyclable polyurethane for demanding applications
  • Highly transparent yellow-tinted lid for use in the dark with light tubes
  • Non-slip, yellow polyethylene lid with high warning effect and secure closure
  • Patented, self-cleaning lid hinge
  • Channels: 2 channels each 120 x 113 mm and 33 x 50 mm
  • Two channels suitable for A-suction hoses and multipin connectors
  • Load bearing capacity approx. 5 t / 20 x 20 cm
  • Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 70 x 78.3 x 13.9 cm; Weight 30.5 kg
  • Reliable protection for cables, hoses, and personnel for indoor and outdoor use
Product typeCable Protectors
Type2 Channels
Length700 mm
Width783 mm
Height139 mm
Channels4
Width channel 133 mm
Height channel 150 mm
Width channel 2120 mm
Height channel 2113 mm
Width channel 3120 mm
Height channel 3113 mm
Width channel 433 mm
Height channel 450 mm
MaterialPolyurethane
Max. loadapprox. 5t on a surface area of 20 x 20 cm
Chemical resistanceacid-resistant, oil-resistant, petrol-resistant, Short-term contact with solvents
Hardness range88 Shore
Fire protection classB2
Temperature range- 30 to 60 °C
Weight31,02 kg
Special featureDEKRA-certified
