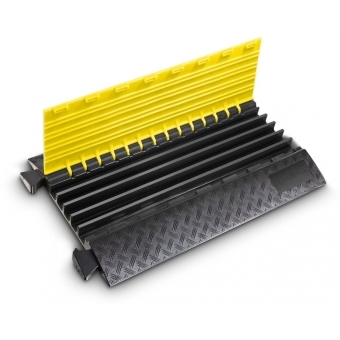

de la in 60 de rate fixe.The Defender® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 20 x 20 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. Defender® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.
Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.
| Product type | Cable Protectors |
| Type | 5 Channels |
| Length | 870 mm |
| Height | 52 mm |
| Width | 542 mm |
| Channels | 5 |
| Width channel 1 | 34 mm |
| Height channel 1 | 36 mm |
| Width channel 2 | 34 mm |
| Height channel 2 | 36 mm |
| Width channel 3 | 34 mm |
| Height channel 3 | 36 mm |
| Width channel 4 | 34 mm |
| Height channel 4 | 36 mm |
| Width channel 5 | 34 mm |
| Height channel 5 | 36 mm |
| Material | Polyurethane |
| Max. load | approx. 5t on a surface area of 20 x 20 cm |
| Chemical resistance | acid-resistant, oil-resistant, petrol-resistant, Short-term contact with solvents |
| Hardness range | 88 Shore ± 4 A Shore |
| Fire protection class | B2 |
| Temperature range | -30°C to 60°C °C |
| Weight | 12,8 kg |
| Special feature | DEKRA-certified |
